CB MARINE VALVE

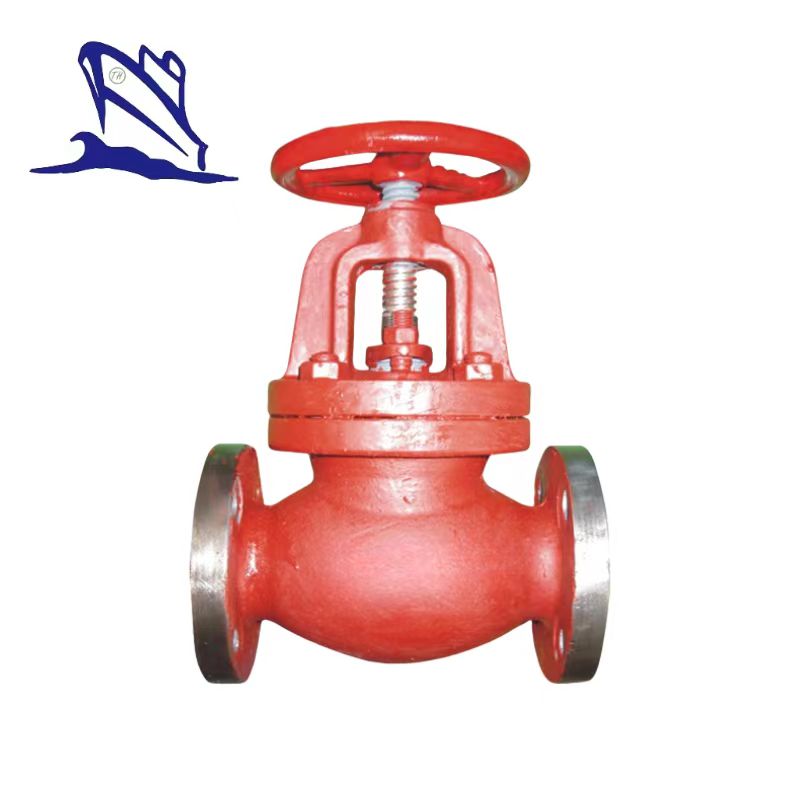

Marine Flanged Cast Iron Stop Valve CB/T4010-2005:

1.Design standard:CB/T4010-2005.

2.End standard:GB/T2501&GB/T569.

3.End type:Flange.

4.PN:1.0Mpa.

5.DN:50mm-400mm.

6.Main material:

• Body/Bonnet:HT200;
• Seat:BC6;
• Stem:Brass;
• Disc:BC6.

7.Application:Fresh water,oil and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Fundamental dimensions of Marine Flanged Cast Iron Stop Valve CB/T4010-2005
