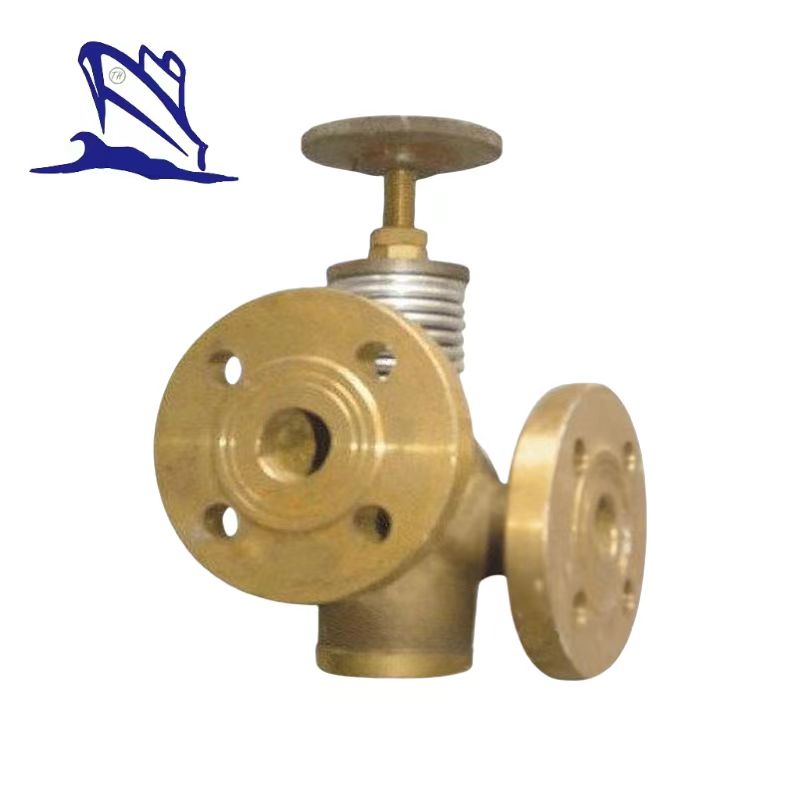

Marine Liquidometer Self-closing Valve CB/T3265-1994
Marine Liquidometer Self-closing Valve CB/T3265-1994:
1.Design standard:CB/T3265-1994.
2.End standard:GB/T2501&GB/T569.
3.End type:Flange.
4.PN:0.1Mpa.
5.DN:25mm.
6.Main material:
- Body/Bonnet:Cast tin bronze;
- Stem:Cast aluminum bronze;
- Disc:Cast aluminum bronze.
7.Application:Fuel oil and lubricant oil piping.
8.Fundamental dimensions of Marine Liquidometer Self-closing Valve CB/T3265-1994:
Type | Flange connection dimension | Bolt | Weight | |||||
D/mm | D1/mm | D2/mm | d0 /mm | b/mm | n | Th. | kg | |
Z、Y | 105 | 73 | 56 | 13 | 13 | 4 | M12 | 3.9 |
ZS、YS | 100 | 75 | 60 | 11 | 14 | 4 | M10 | 4.0 |
