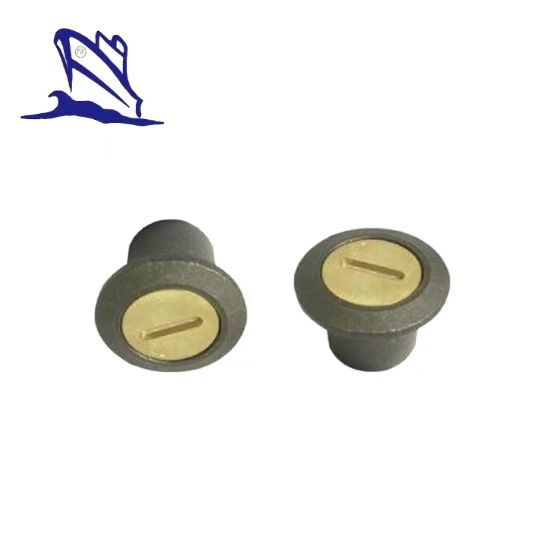

Sounding Pipe Head
Sounding Pipe Head
1. Application: Marine
2. Medium: Water
3. Temperature: Normal Temperature
4. Standard: CB/T3778-1999
5. Body Material: Cast Steel
6. Plug Material: Brass
7. Gasket Material: NBR
8. Sounding Pipe Head Specification:
DN | H | D1 | D2 | D5 | D3 | D4 | a | B | h | d | D | D6 | b |
40 | 60 | 73 | 50 | 59 | 65 | 57 | 34 | 6 | 10 | M45*3 | 80 | 50 | 6 |
50 | 65 | 92 | 62 | 78 | 75 | 76 | 34 | 6 | 10 | M60*3 | 92 | 62 | 6 |
65 | 70 | 108 | 82 | 94 | 90 | 92 | 34 | 6 | 10 | M76*3 | 112 | 82 | 6 |
80 | 75 | 122 | 93 | 108 | 105 | 106 | 55 | 10 | 14 | M90*3 | 123 | 93 | 10 |
100 | 80 | 142 | 118 | 128 | 130 | 126 | 55 | 10 | 14 | M115*3 | 148 | 118 | 10 |
150 | 100 | 198 | 172 | 180 | 185 | 178 | 55 | 10 | 14 | M165*3 | 202 | 172 | 10 |
