GB/T 14364-2008 Inland Water Vessel Intermediate Bearing
GB/T 14364-2008 Inland Water Vessel Intermediate Bearing

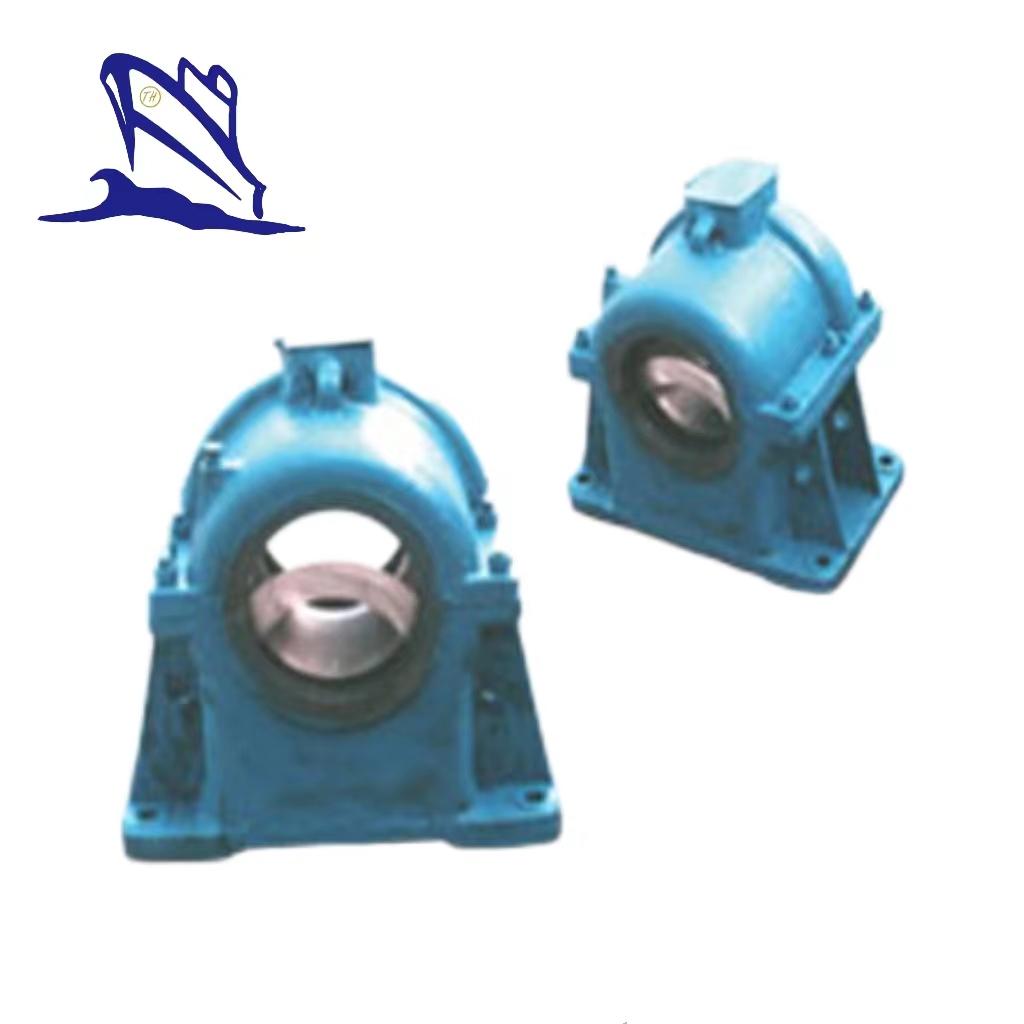

This product is gliding intermediate bearing for inland water vessels. This marine sliding type shafting intermediate bearing is designed and manufactured according to GB/T14364-2008 standard which is widely applied in the intermediate bearing of new exporting ships and domestic ships.
Scope of application:
1. linear velocity: 1.5~8 m/s
2. unit pressure: ≤0.6 MPa
3. lubricating oil temperature: 65 0C
4. cooling water amount: 0.5~7 t/h

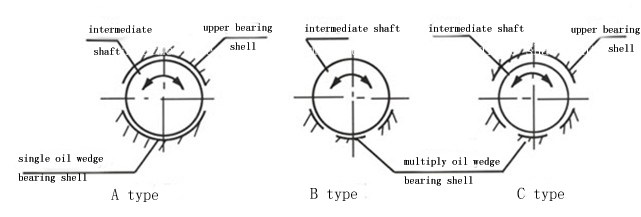

Type | Structural style | Shaft diameter | Parameter for design |
A | Single oil wedge sliding type with upper bearing shell | 80~220 | For the intermediate shaft bearing of minimal ship which close to stern tube or after compute which have load pressure |
B | Multiply oil wedge sliding type | 250~800 | For the intermediate shaft bearing of large ship |
C | Multiply oil wedge sliding type with upper bearing shell | 250~800 | For the intermediate shaft bearing of large ship which close to stern tube or after compute which have load pressure |
