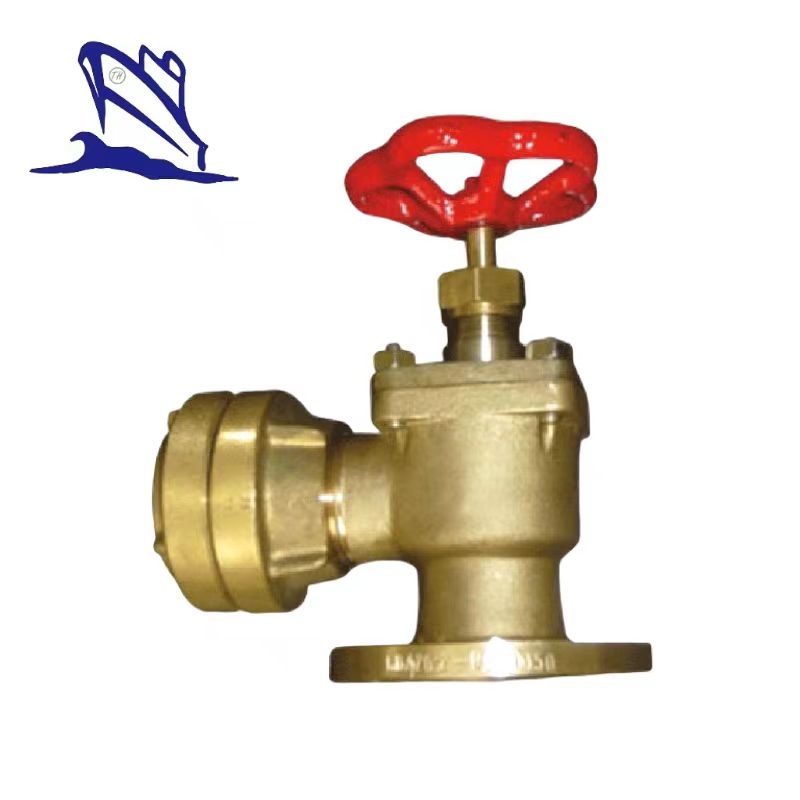

Marine Bronze Fire Valve CBM1107-82
Marine Bronze Fire Valve CBM1107-82:
1.Design standard:CBM1107-82.
2.End standard:CBM1020.
3.End type:Flange.
4.PN:1.0Mpa.
5.DN:40mm-65mm.
6.Main material:
- Body/Bonnet:BC6;
- Seat:BC6;
- Stem:BS;
- Disc:BC6.
7.Application:Sea water piping and fresh water piping.
8.Function: Such valves are used for fire control.
9.Fundamental dimensions of Marine Bronze Fire Valve CBM1107-82:
DN | Structure dimension | Flange connection dimension | Thick ness | Bolt | Joint | Hand wheel | Lift range | Weight | ||||||||||||
H | L | L1 | L2 | kg | ||||||||||||||||
mm | Type A | Type B | Type A | Type A | Type B | Type B | D | C | g | h | t | a | n | Th. | M | D0 | S | m | Type A | Type B |
40 | 260 | 236 | 175 | 90 | 100 | 75 | 140 | 105 | 85 | 19 | 16 | 5 | 4 | M16 | M52x2 | 120 | 11 | 11 | 8.40 | 7.90 |
50 | 288 | 258 | 220 | 110 | 120 | 105 | 155 | 120 | 100 | 19 | 16 | 5 | 4 | M16 | M64x2 | 140 | 12 | 14 | 10.50 | 10.30 |
65 | 335 | 301 | 275 | 135 | 135 | 120 | 175 | 140 | 120 | 19 | 18 | 6 | 4 | M16 | M80x2 | 160 | 14 | 18 | 17.85 | 15.86 |
