MARINE WINDLASS

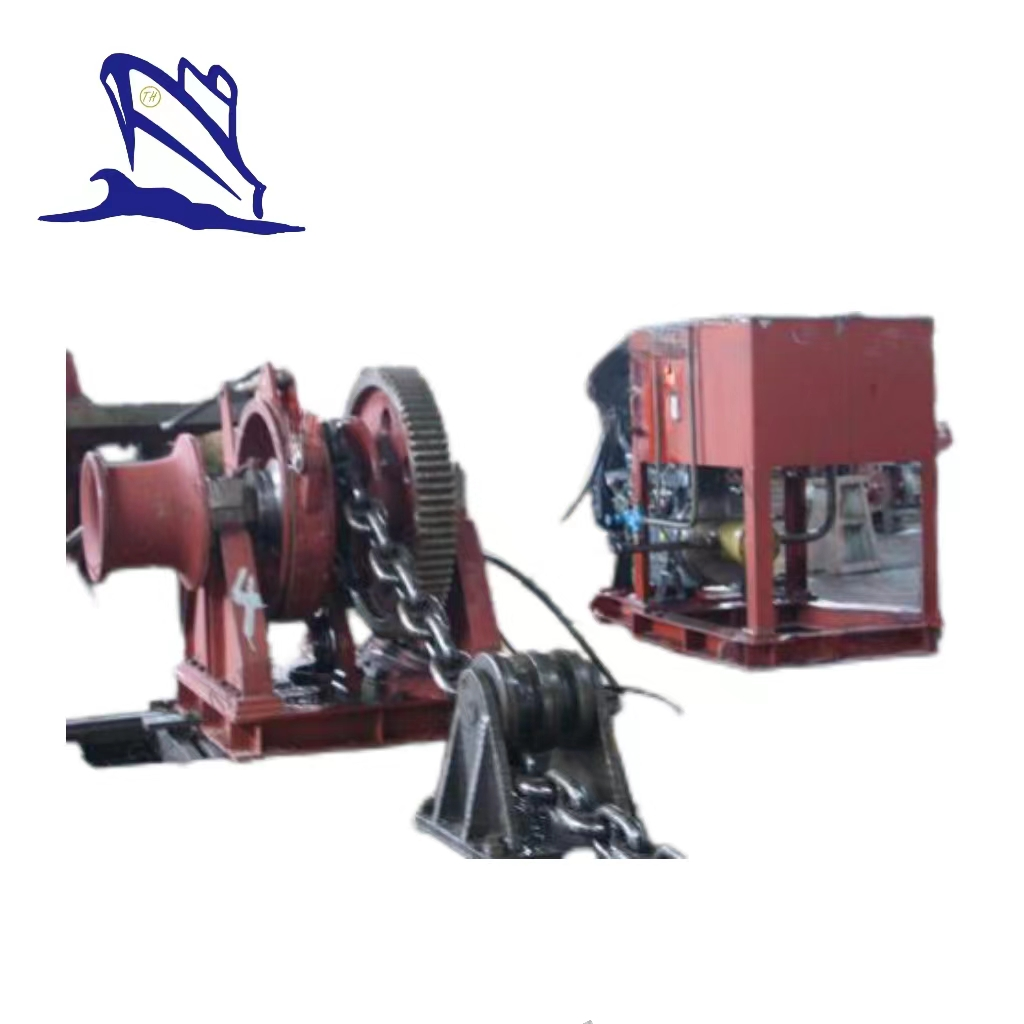

Symmetrical El-combined Windlass Mooring Winch

Combined windlass/mooring winch can be used separately as windlass and be used as an automatic or non-automatic mooring winch as well.

Our company can design and produce various types of windlass mooring winches according to our customer's drawing and requirements, including symmetrical el-combined windlass mooring winch, single el-combined windlass mooring winch, symmetrical hy-combined windlass mooring winch, single hy-combined windlass mooring winch and so on. The product quality is in line with the GB4447-92 national standards and the requirements of classification societies.

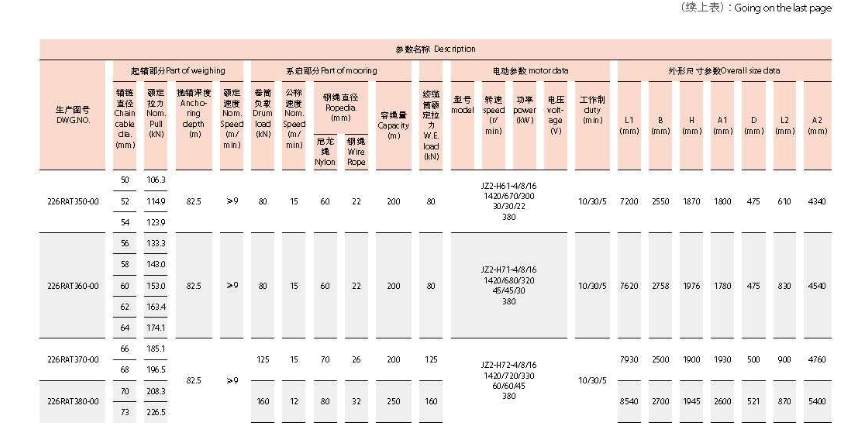

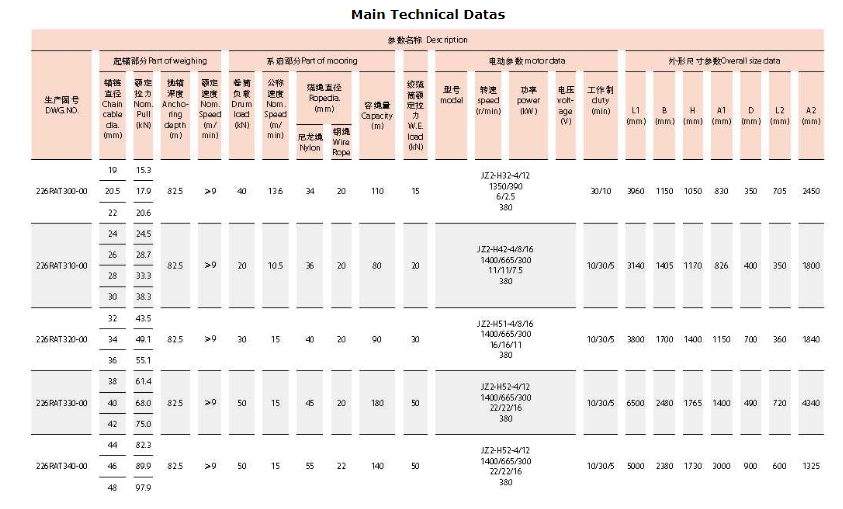

Main Specifications of Symmetrical El-combined Windlass Mooring Winch:

1. Chain Cable Diameter: 19mm to 73mm

2. Nominal Pull: 15.3kN to 226.5kN

3. Anchoring Depth: 82.5m

4. Rated Speed: ≥9m/min

5.Drum Load: 40kN to 160kN

6. Nominal Speed: 13.6m/min to 15m/min

7. Rope Diameter:

A. Nylon Rope: 34mm to 80mm

B. Wire Rope: 20mm to 32mm

8. Rope Capacity: 80m to 250m

9. Rated Load of Cable Drum: 15kN to 160kN
