MARINE SHAFTING PARTS

JT/T259 Shafting Intermediate Bearing

JT/T259 Shafting Intermediate Bearing

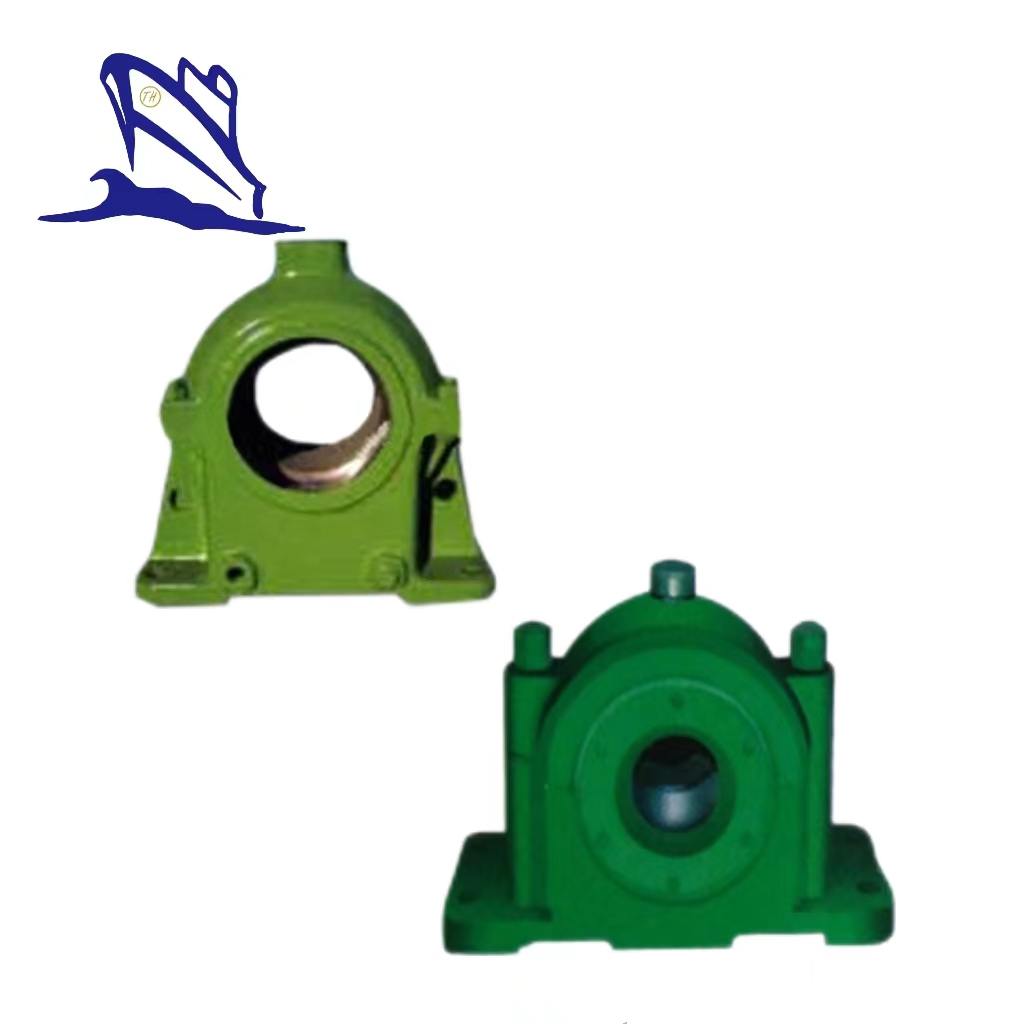

Made of metal, this product is the type D marine shafting intermediate bearing. It is a kind of integral rolling bearing and suggested for medium inland water vessels use. Certificates like CCS, ABS, DNV, BV, NK, and GL can be offer according to customer’s request. To meet customers’ need, we can offer OEM service and design the product according to clients’ request.

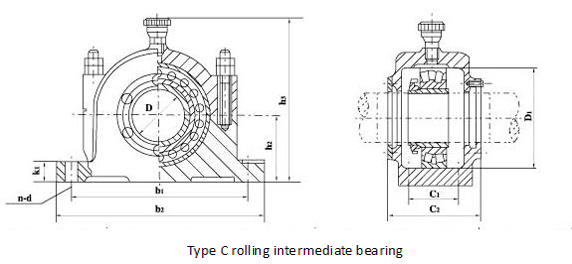

Type		Dimensions (mm)										Weight (kg)
Type		D	C1	C2	D1	b1	b2	h3	h1	h2	n-d	Weight (kg)
C	70	70	70	128	140	270	310	224	30	95	4-21	19
	80	80	80	138	160	290	330	243	30	105	4-21	26
	90	90	90	148	180	320	360	270	35	120	4-21	30
	100	100	100	158	200	350	390	290	35	130	4-221	38
	110	110	110	178	215	370	420	310	40	137.5	4-25	46
	125	125	130	198	250	420	470	360	45	165	4-25	59

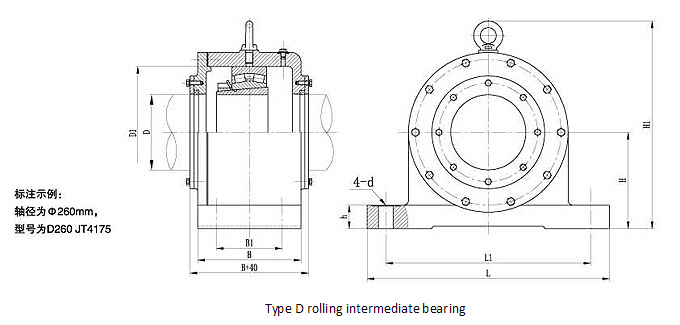

Dimensions (mm)											Weight (kg)
Bearing Model	D	D1	L	L1	B	B1	H	h	d	H1	Weight (kg)
3253122	110	180	386	326	170	110	150	35	20	330	30
3253123	115	200	406	346	180	120	160	35	20	345	35
3253125	125	210	430	360	190	120	165	40	26	360	43
3253127	135	225	446	376	200	130	175	40	26	380	53
3253128	140	240	476	396	210	130	180	45	26	400	66
3253130	150	250	486	406	220	140	190	45	32	415	80
3253132	160	280	516	436	220	140	205	50	32	445	95
3253134	170	290	540	450	240	150	210	50	38	460	112
3253136	180	310	560	470	240	150	220	50	38	485	130
3253140	200	340	590	500	250	160	240	55	38	530	150
3253144	220	360	640	530	270	160	260	60	44	570	175
3253148	240	400	680	570	290	180	280	60	44	610	200
3253152	260	420	720	600	300	180	300	65	50	650	230
3253156	280	460	760	640	310	190	320	65	50	690	260
3253160	300	480	800	670	320	190	340	70	58	730	290
3253164	320	520	840	710	330	200	360	70	58	770	340
