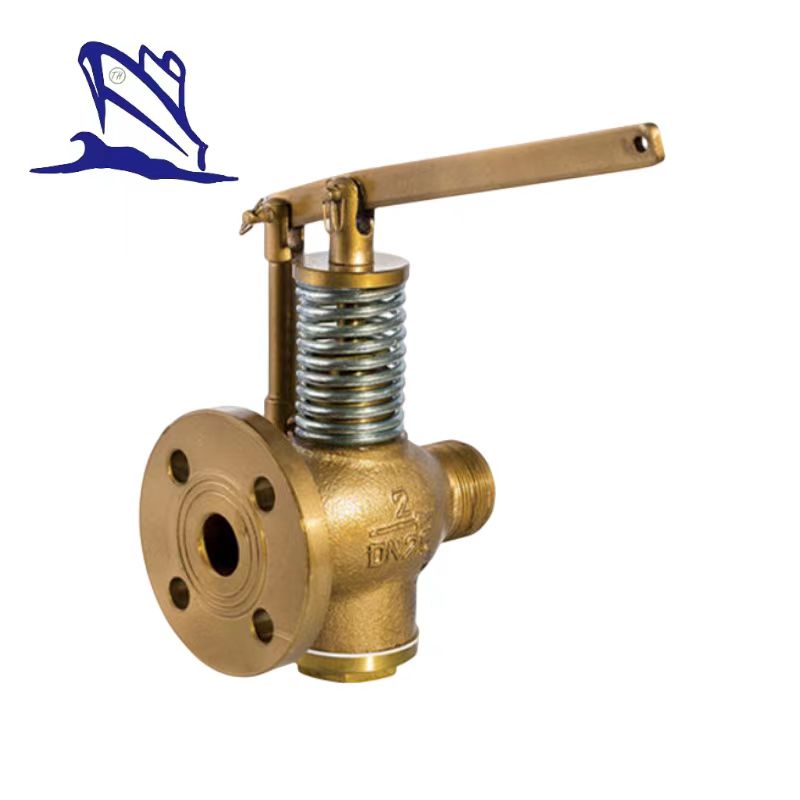

Marine Bronze Male Screw Thread Stuffing Cock GB598-1980
Marine Bronze Male Screw Thread Stuffing Cock GB598-1980:
1.Design standard:GB600-82.
2.End standard:CB56-80.
3.End type:Thread.
4.PN:0.1/1.6/2.5Mpa.
5.DN:6mm-32mm.
6.Main material:
- Body/Bonnet:BC6;
- Seat:BC6;
- Stem:BRASS;
- Disc:BC6.
7.Application:Sea water piping,fresh water piping and oil piping.
DN/mm | Structure dimension | Threa jiont | Handle | Weight/kg | |||||||
L/mm | H1/mm | H/mm | D/mm | D1/mm | D2/mm | l/mm | L0 | Type A | Type T | Type L | |
6 | 70 | 20 | 60 | M22x1.5 | — | — | 12 | 100 | 0.42 | 0.48 | 0.49 |
10 | 78 | 27 | 72 | M27x1.5 | — | — | 15 | 110 | 0.69 | 0.71 | 0.72 |
15 | 92 | 37 | 92 | M36x2 | — | — | 16 | 115 | 1.07 | 1.24 | 1.26 |
20 | 98 | 40 | 99 | M36x2 | 33 | 24 | 20 | 125 | 1.52 | 1.70 | 1.72 |
25 | 106 | 42 | 108 | M42x2 | 39 | 29 | 20 | 140 | 1.90 | 2.22 | 2.24 |
32 | 126 | 49 | 120 | M48x2 | 45 | 36 | 20 | 160 | 3.47 | 3.79 | 3.89 |
