JZ Marine Shafting Mechanical Brake
JZ Marine Shafting Mechanical Brake

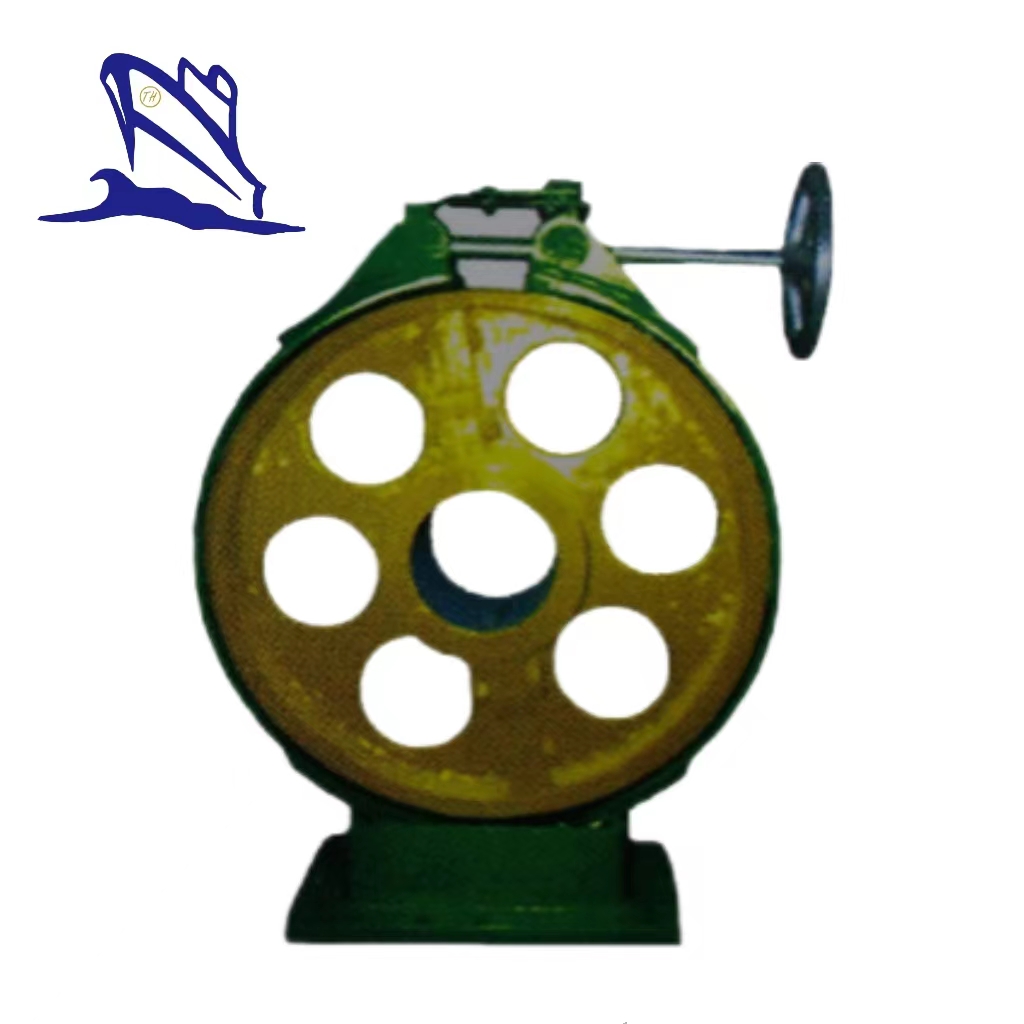

This product is JZ shafting mechanical brake for vessels. It is t is suitable for small and medium vessels whose stem shafts need to be locked when they anchor. We can provide many kinds of model about this product. If you can‘t find the size what you want, please be free to tell us, we will manufacture the product according to you demand.

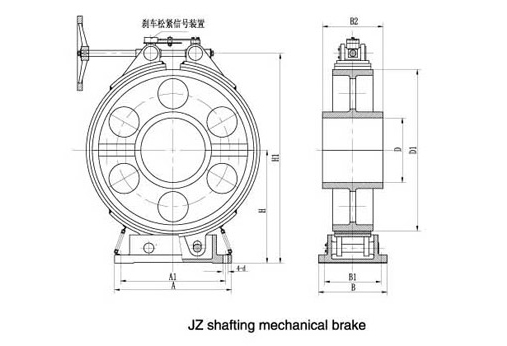

Model | D | D1 | H | H1 | A | A1 | B | B1 | B2 | Weight (kg) |
JZ60 | 60 | 380 | 285 | 505 | 320 | 260 | 160 | 110 | 100 | 84 |
JZ70 | 70 | 83 | ||||||||
JZ80 | 80 | 82 | ||||||||
JZ90 | 90 | 81 | ||||||||
JZ100 | 100 | 80 | ||||||||
JZ110 | 110 | 500 | 355 | 645 | 380 | 320 | 200 | 150 | 180 | 124 |
JZ120 | 120 | 123 | ||||||||
JZ130 | 130 | 122 | ||||||||
JZ140 | 140 | 121 | ||||||||
JZ150 | 150 | 120 | ||||||||
JZ160 | 160 | 620 | 450 | 820 | 440 | 380 | 260 | 200 | 240 | 190 |
JZ170 | 170 | 188 | ||||||||
JZ180 | 180 | 186 | ||||||||
JZ190 | 190 | 184 | ||||||||
JZ200 | 200 | 182 | ||||||||
JZ210 | 210 | 750 | 520 | 960 | 500 | 540 | 300 | 240 | 280 | 300 |
JZ220 | 220 | 295 | ||||||||
JZ230 | 230 | 290 | ||||||||
JZ240 | 240 | 285 | ||||||||
JZ250 | 250 | 280 |
