Fire Foam Monitor
Fire Foam Monitor

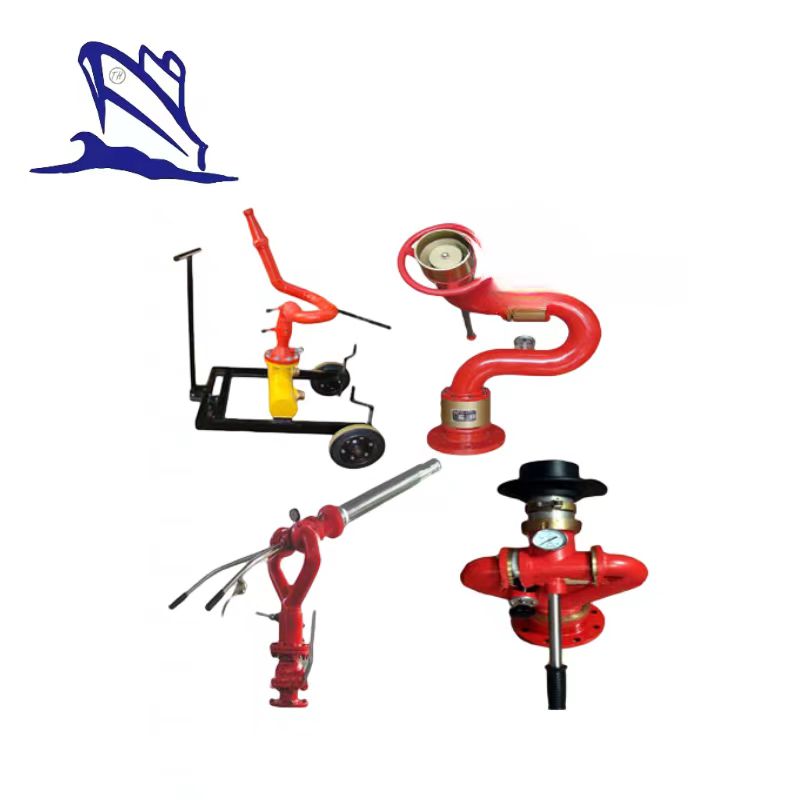

Fire foam monitor is one series of fire monitors used to put out the distant fire through producing and jetting foam. It applies to not only petrochemical industries, storage tanks, airport, warehouses, ports but also to the marine vessels, offshore fixed platforms and firefighting trucks. Foam fire monitor mainly consists of handle,base,hose, rotating part,locking device,foam injection system and rotating mechanism. Fire foam monitor works perfectly under the working pressure 8~10MPa. It can spray both foam and water. It is simple to operate. Fire foam monitor is the perfect firefighting equipment for fire fighting or cooling. If you’re interested in our fire monitors, please do not hesitate to contact us.
Technical Parameters:
Model | Flow Rate(L/s) | Expansion Ratio | 25% Suction Time(min) | Working Pressure(MPa) | Weight(kg) | Inlet Flange | Jetting Range(m) |
PP24 | 24 | ≥6 | ≥2.5 | 0.8-1.0 | ≤35 | DN80 | ≥40 |
PP32 | 32 | ≥6 | ≥2.5 | 0.8-1.0 | ≤35 | DN80 | ≥45 |
PP40 | 40 | ≥6 | ≥2.5 | 0.8-1.0 | ≤35 | DN80 | ≥50 |
PP48 | 48 | ≥6 | ≥2.5 | 0.8-1.0 | ≤35 | DN80 | ≥55 |
PP64 | 64 | ≥6 | ≥2.5 | 0.8-1.0 | ≤35 | DN80 | ≥60 |
PP80 | 80 | ≥6 | ≥2.5 | 1.0-1.2 | ≤45 | DN100 | ≥65 |
PP100 | 100 | ≥6 | ≥2.5 | 1.0-1.2 | ≤60 | DN100 | ≥75 |
