GCD Marine Bulkhead Gearing
GCD Marine Bulkhead Gearing

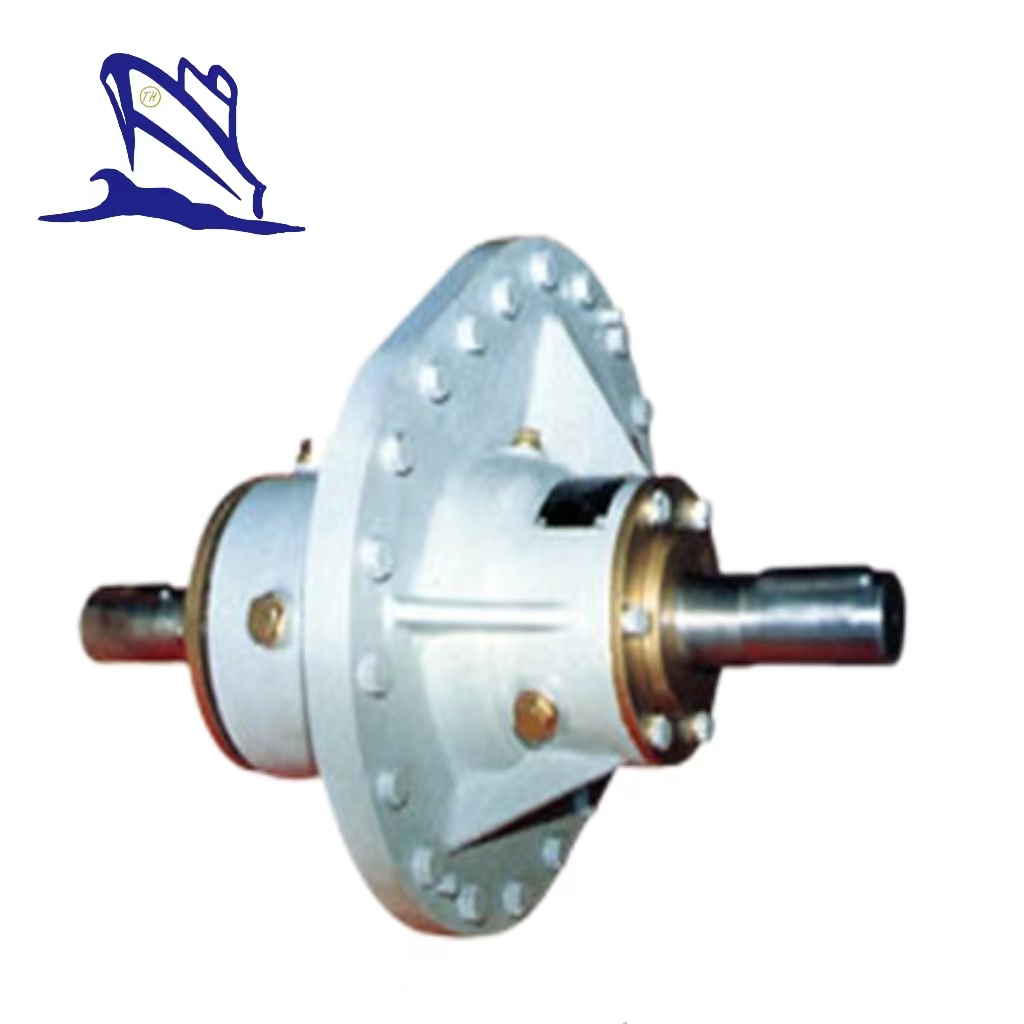

This product is GCD type marine bulkhead gearing device. It is suitable for power transmission of the ship’s bulkhead between pump room and engine room (speed no more than 3000r/min) of vessels which transport the crude oil, petroleum products and liquid chemicals. It is in line with national standards and ship inspection requirements.
Model | Cooling water capacity m3/h | L | H | B | L1 | L2 | D | R | D1 | Weight (kg) | Cooling water intake/outlet |
mm | |||||||||||
GCD-30 | 1 | 580 | 550 | 420 | 280 | 58 | 235 | 187.5 | Ø30 | 100 | M14x1.5 |
GCD-40 | 1 | 640 | 550 | 420 | 310 | 82 | 235 | 187.5 | Ø40 | 109 | |
GCD-50 | 1 | 680 | 550 | 420 | 330 | 82 | 235 | 187.5 | Ø50 | 126 | |
GCD-60 | 1 | 720 | 550 | 420 | 350 | 105 | 295 | 187.5 | Ø60 | 133 | |
GCD-70 | 1 | 760 | 550 | 420 | 380 | 105 | 295 | 187.5 | Ø70 | 150 | |
GCD-80 | 1 | 800 | 550 | 420 | 390 | 130 | 295 | 187.5 | Ø80 | 180 | |
GCD-90 | 1.5 | 880 | 550 | 420 | 410 | 130 | 295 | 187.5 | Ø90 | 230 | |
GCD-100 | 1.5 | 930 | 670 | 540 | 480 | 165 | 351 | 245 | Ø100 | 260 | |
