JT/T365-1995 Stern Shaft Lubrication Oil Tank
JT/T365-1995 Stern Shaft Lubrication Oil Tank
This product is marine stern shaft lubrication oil tank which is approved by JT/T365-1995 standard. This type of oil tanks above 30L can be equipped with a low oil alarm device. In the table as follow, we can supply four models of this product. The sizes of it are for reference only. We can make a special design according to customer’s request.

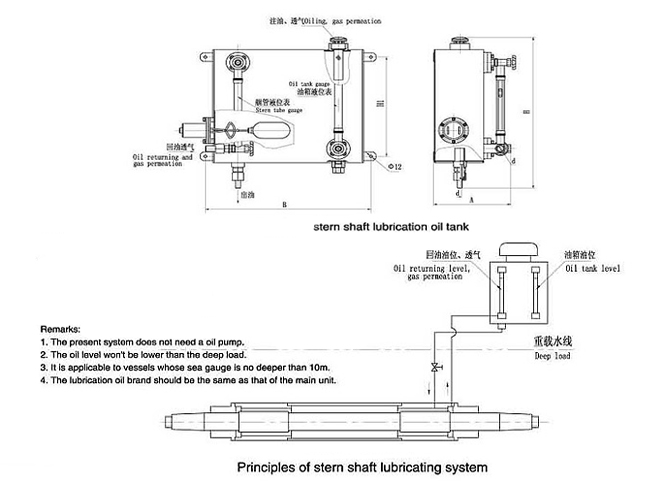

Model | Capacity L | A | B | H | H1 | d | Applicable stern shaft diameter | Weight kg | |
One shaft with on oil tank | Two shafts with one oil tank | ||||||||
15JT/T365 | 15 | 245 | 370 | 630 | 360 | 15 | ≥70≤120 | ＜70 | 10 |
30JT/T365 | 30 | 245 | 520 | 730 | 460 | 15 | ＞120≤170 | ≥70≤120 | 15 |
50JT/T365 | 50 | 285 | 670 | 730 | 460 | 20 | ＞170 | 18 | 26 |
