FIRE MONITOR

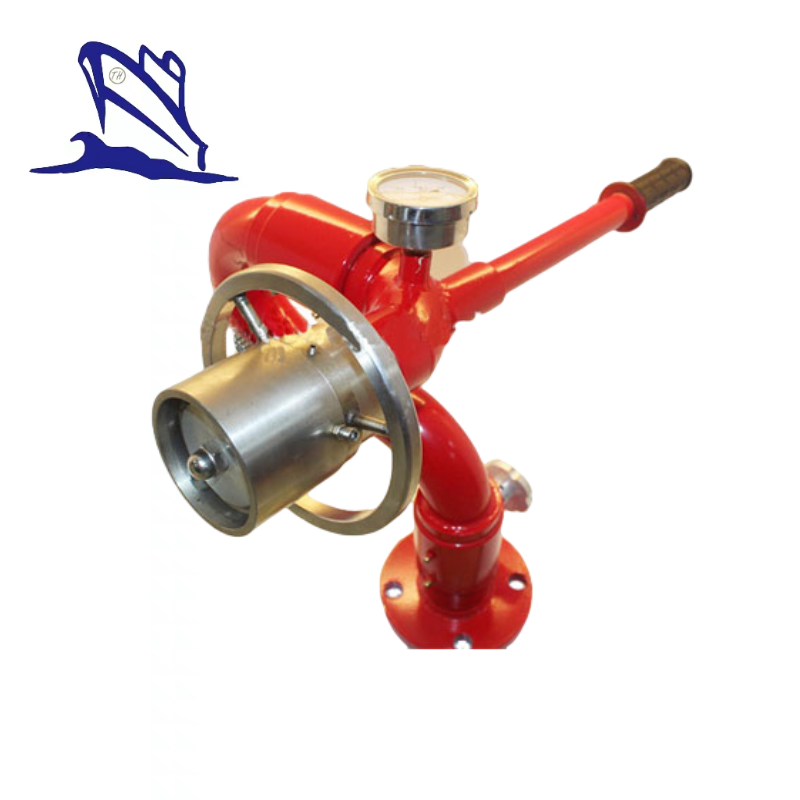

Automatic Stainless Steel Fire Monitor

Automatic stainless steel fire monitor is manually operated fire monitor. It sprays water flowering or DC to extinguish a large area of fire. Manual fire fighting water monitor can achieve horizontal rotation and pitch rotation. It can easily achieve positioning locking. Its flow rate is up to 200L/S. The flow nozzles are adjustable and automatic which can meet different conditions of use.If you’re interested in our fire monitors, please do not hesitate to contact us.

Product Specification:

Model Type: Automatic,manual,fixed

Working Pressure: 0.8-1.2MPa

Flow Rate: 20-100L/S

Horizontal Angle: 0-360°

Pitch Angle: -30°~ +70°

Inlet Flange: DN80, DN100

Jetting Range:48~85m

Weight: 25~70kg

Fire extinguishing agent: water

Material: stainless steel

Certificate: EC etc.
