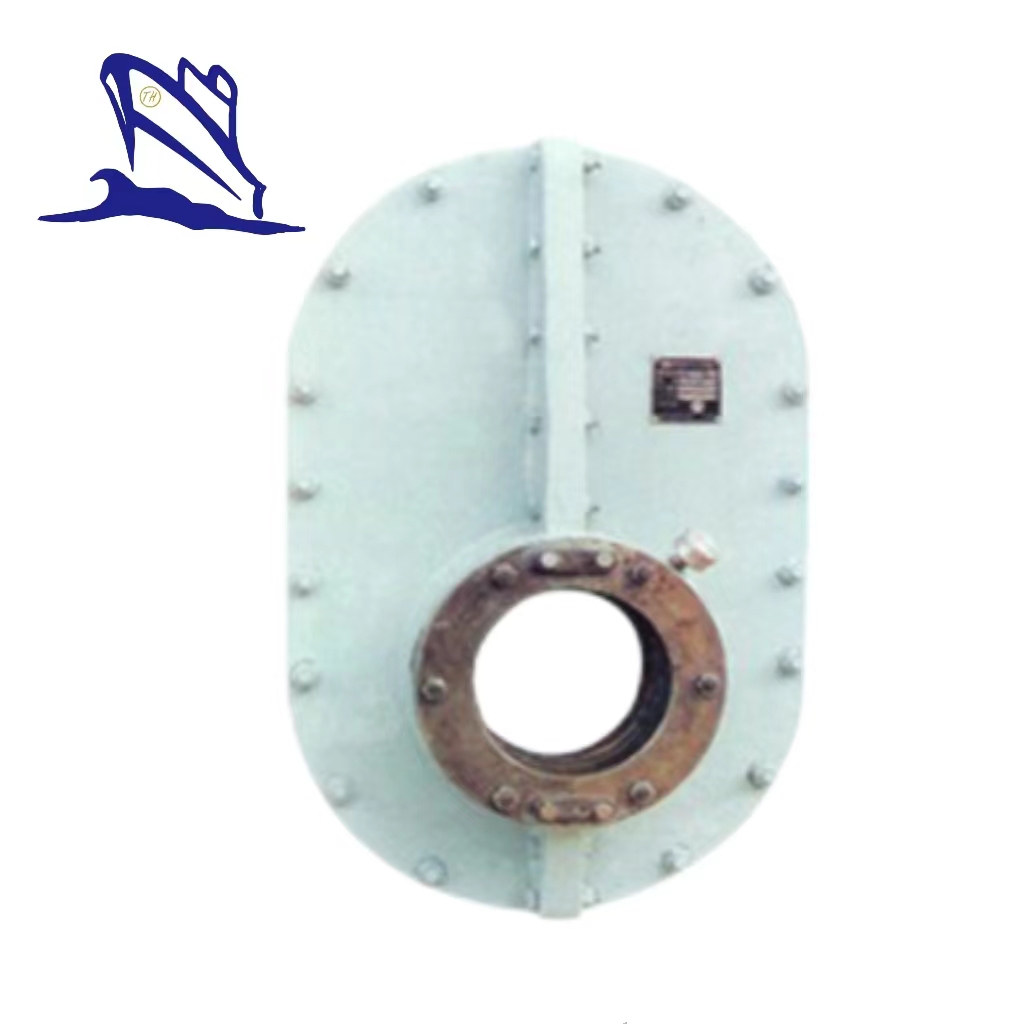

Type A Intermediate Shaft Bulkhead Stuffing Box

Type A Intermediate Shaft Bulkhead Stuffing Box
Marine intermediate shaft bulkhead stuffing box is the sealing device which is installed in the bulkhead where the shaft is through, in order to keep watertight. We can supply three types of this product, this one is type A. It is suggested for vessels whose bulkhead space is large. It is approved by JT/T263-1995 standard. Certificates like CCS, BV, ABS, GL, LR, etc. can be offered according to customer’s requirement.
Features:
1. Material: cast iron
2. Standard: JT/T263-1995
3. Certificates: CCS, ABS, BV, DNV, KR, GL, etc.

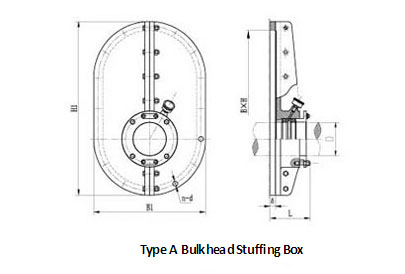

Dimensions (mm) | ||||||||||
Type | D | B(D1) | H | B1(D2) | H1 | L | δ | n | d | oil cup (cm3) |
A70 | 70 | 220 | 360 | 280 | 420 | 120 | 16 | 14 | 13 | 18 |
A80 | 80 | 240 | 400 | 300 | 460 | 120 | 16 | 14 | 13 | 18 |
A90 | 90 | 260 | 430 | 320 | 490 | 120 | 16 | 14 | 13 | 18 |
A100 | 100 | 290 | 490 | 360 | 560 | 120 | 16 | 14 | 13 | 18 |
A110 | 110 | 310 | 520 | 380 | 590 | 150 | 20 | 14 | 15 | 25 |
A120 | 120 | 350 | 590 | 420 | 660 | 150 | 20 | 14 | 15 | 25 |
A130 | 130 | 370 | 610 | 440 | 680 | 150 | 20 | 14 | 15 | 25 |
A140 | 140 | 390 | 650 | 460 | 720 | 150 | 20 | 16 | 15 | 25 |
A150 | 150 | 410 | 690 | 480 | 760 | 150 | 20 | 16 | 15 | 25 |
A160 | 160 | 420 | 710 | 500 | 790 | 190 | 22 | 16 | 17 | 50 |
A170 | 170 | 440 | 740 | 520 | 820 | 190 | 22 | 16 | 17 | 50 |
A180 | 180 | 450 | 770 | 530 | 850 | 190 | 22 | 16 | 17 | 50 |
A190 | 190 | 470 | 800 | 550 | 880 | 190 | 22 | 16 | 17 | 50 |
A200 | 200 | 480 | 820 | 560 | 900 | 190 | 22 | 16 | 17 | 50 |
