DIN MARINE VALVE

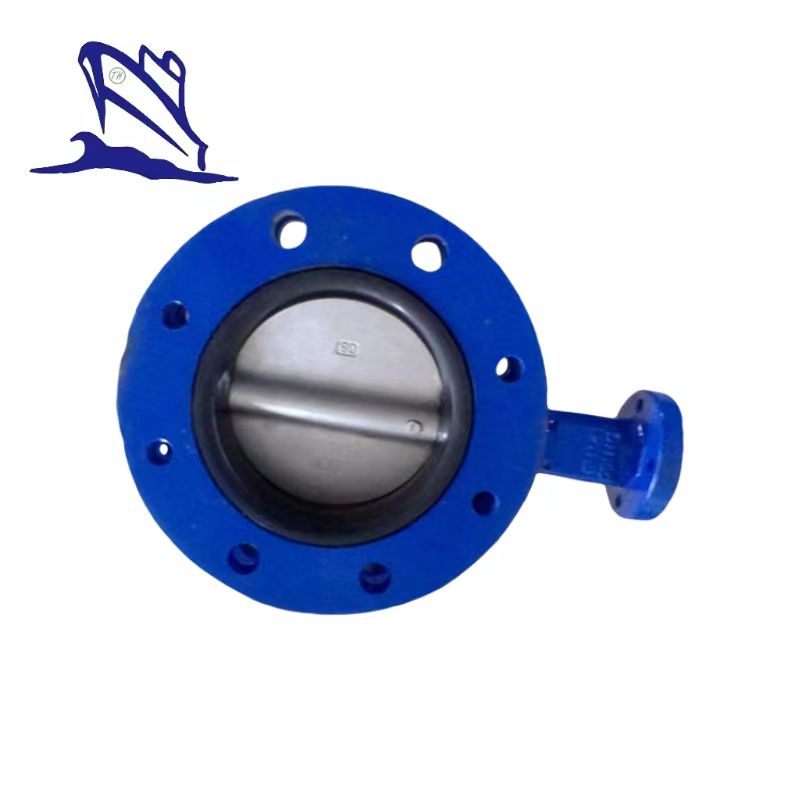

Lug Type Butterfly Valve

Lug Type Butterfly Valve

1. Standard: DIN

2. Connections: Lug Type

3. Operation: Hand Lever, Worm Gear, Electric Drive, Pneumatic Drive or Hydraulic Drive.

4. Nominal Pressure: DIN PN10/16

5. Temperature Range: NBR -10℃~+80℃

6. Name of Parts:

Body	Cast Iron or Ductile Iron
Disc	Ductile Iron
Stem	Stainless Steel
Liner	NBR

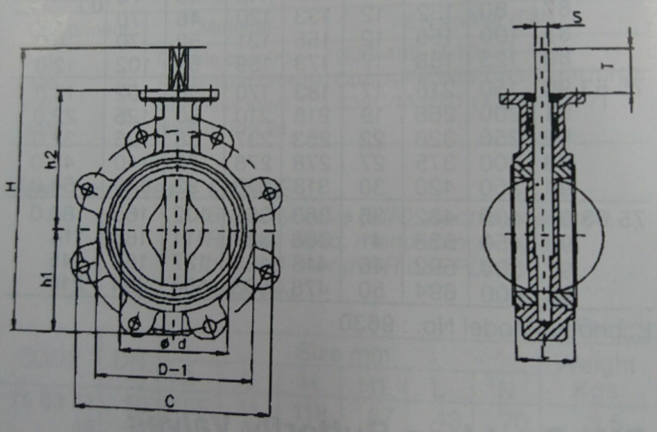

7. Specification for PN6:

IMPA Code	DN	D-1	d	L	H	S	T	C	Bolt
754416	50	102	52	43	240	10	-	110	4x14
754417	65	115	65	46	247	10	-	130	4x14
754418	80	128	80	46	266	10	-	150	4x18
754419	100	153	100	52	298	10	-	170	4x18
754420	125	183	125	56	331	12	-	200	8x18
754421	150	210	150	56	363	15	-	225	8x18
754422	200	259	198	60	412	15	-	280	8x18
754423	250	328	248	68	506	18	-	335	12x18
754424	300	374	298	78	538	20	-	395	12x22
754425	350	416	327	78	675	20	45	445	12x22
754426	400	475	387	102	817	-	60	495	16x22
754427	450	535	438	114	877	-	60	550	16x22
754428	500	586	477	127	1008	-	60	600	20x22
754429	600	695	560	154	1180	-	60	705	20x26

8. Specification for PN16:

IMPA Code	DN	D-1	d	L	H	S	T	C	Bolt
754431	50	102	52	43	240	10	-	125	4x18
754432	65	115	65	46	247	10	-	145	4x18
754433	80	128	80	46	266	10	-	160	8x18
754434	100	153	100	52	298	10	-	180	8x18
754435	125	183	125	56	331	12	-	210	8x18
754436	150	210	150	56	363	15	-	240	8x22
754437	200	259	198	60	412	15	-	295	8x22
754438	250	328	248	68	506	18	-	350	12x22
754439	300	374	298	78	538	20	-	400	12x22
754440	350	416	327	78	675	20	45	460	12x22
754441	400	475	387	102	817	-	60	515	16x26
754442	450	535	438	114	877	-	60	565	20x26
754443	500	586	477	127	1008	-	60	620	20x26
754444	600	695	560	154	1180	-	60	725	20x30
