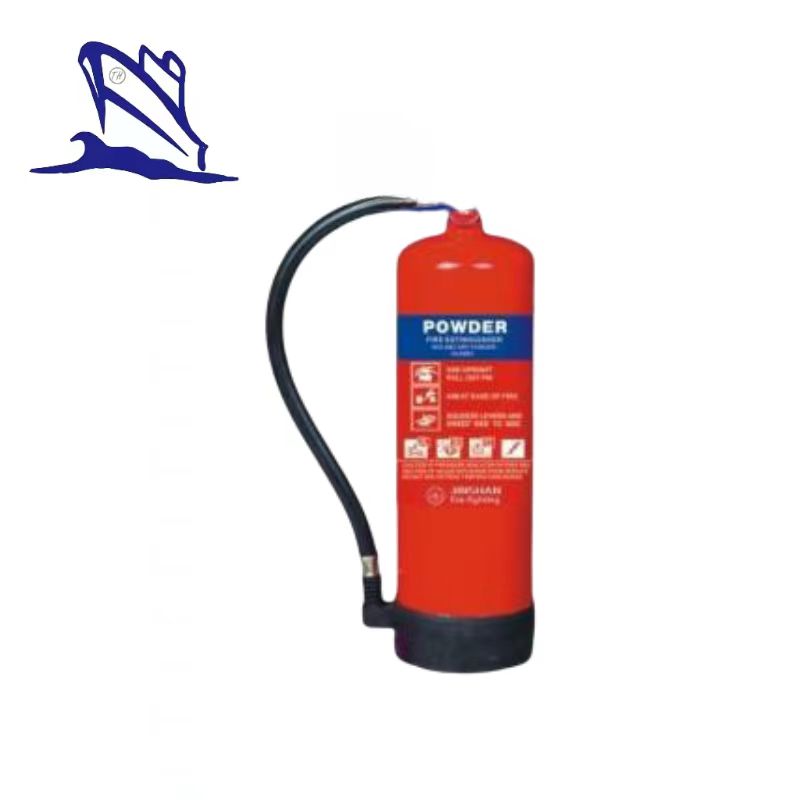

Stored Pressure Dry powder fire extinguisher
Stored Pressure Dry powder fire extinguisher
Stored pressure fire extinguishers are the most common type of fire extinguisher. In stored pressure units, the expellant is stored in the same chamber as the firefighting agent itself. Depending on the agent used, different propellants are used. With dry chemical extinguishers, nitrogen is typically used; water and foam extinguishers typically use air.
Product detail:
Brand name: Stored Pressure Dry powder fire extinguisher
Type: portable fire extinguisher
Material: St12/DC01
Color: red or the color you want
Test pressure (MPa): 2.5
Max Working pressure (MPa):1.4
Operating Temperature(℃): -30~+60
Stored Pressure Dry powder fire extinguisher parameter
Model No. | 0.5KG | 1KG | 1.5KG | 2.3KG | 4.5KG | 9KG |
Capacity(kg) | 0.5±0.05 | 1±0.05 | 1±0.05 | 2.3±0.06 | 4±0.08 | 9±0.10 |
Out-diameter(mm) | 75 | 90 | 90 | 110 | 130 | 163 |
Volume(L) | 0.68 | 1.21 | 1.08 | 2.8 | 5.4 | 10.7 |
Effective discharging time (s) | ≥6 | ≥6 | ≥8 | ≥8 | ≥9 | ≥15 |
Effective discharging range(m) | ≥2 | ≥3 | ≥3 | ≥3 | ≥3.5 | ≥15 |
Class rating | 5A,34BC | 1A,21B | 1A,21B | 2A,31B | 2A,55B | 4A,163B |
