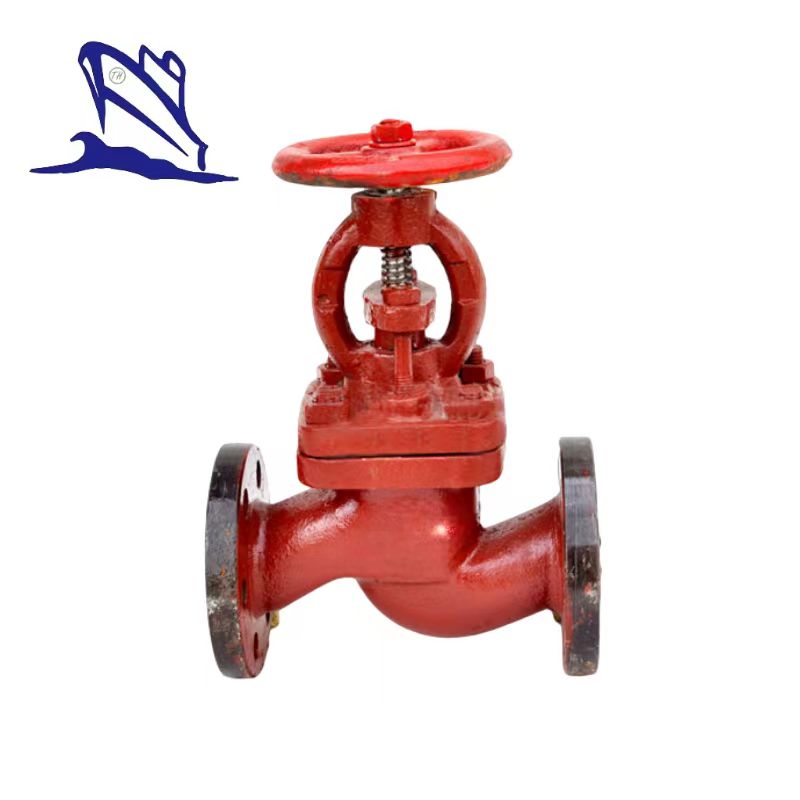

DIN 2501 SDNR Valve
DIN 2501 SDNR Valve
1. SDNR Valve is Screw Down Non-Return Valve.
2. Application: Shipbuilding.
3. Body Material: Cast Iron
4. Disc Material: Stainless Steel
5. Stem Material: Stainless Steel
6. Seat Material: Stainless Steel
7. Nominal Pressure: PN10/PN16

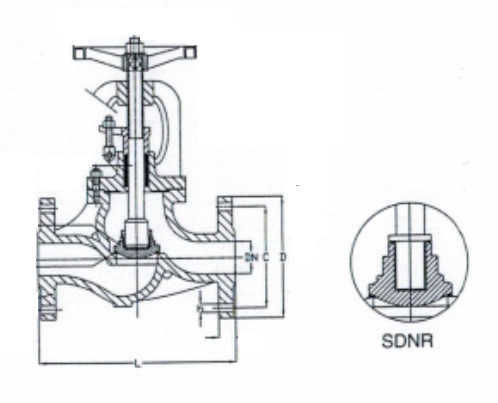

8. Specification:
Size | L | D | C | N0. X h |
15 | 130 | 95 | 65 | 4 x 14 |
20 | 150 | 105 | 75 | 4 x 14 |
25 | 160 | 115 | 85 | 4 x 14 |
32 | 180 | 140 | 100 | 4 x 18 |
40 | 200 | 150 | 110 | 4 x 18 |
50 | 230 | 165 | 125 | 4 x 18 |
65 | 290 | 185 | 145 | 4 x 18 |
80 | 310 | 200 | 160 | 8 x 18 |
100 | 350 | 220 | 180 | 8 x 18 |
125 | 400 | 250 | 210 | 8 x 18 |
150 | 480 | 285 | 240 | 8 x 22 |
175 | 550 | 315 | 270 | 8 x 22 |
200 | 600 | 340 | 295 | 12 x 22 |
250 | 730 | 405 | 355 | 12 x 25 |
300 | 850 | 460 | 410 | 12 x 25 |
