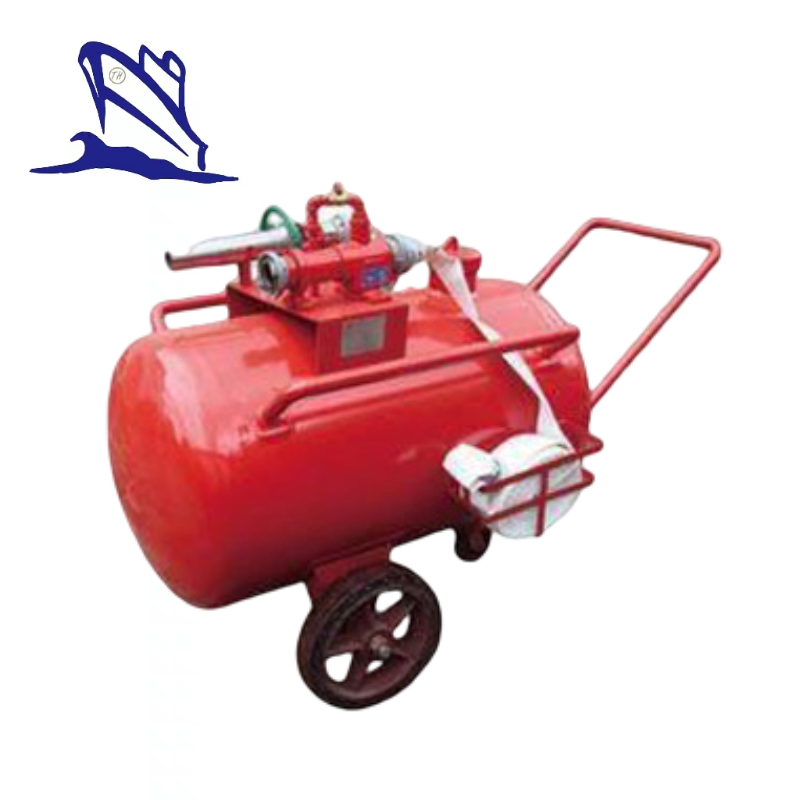

Mobile Foam fire extinguisher device

Mobile Foam fire extinguisher device
This kind of fire extinguisher consists of the foam maker (foam gun), foam proportioner (foam proportioning unit), fire hose, foam concentrate storage tank, foam monitor / nozzle and the trolley. It is mobile, flexible and easy to move, operate, so it has been widely used in oil industries, museums, airports, bus and railway stations workshops / warehouses as well as other places where there is a fire hazard.
Product detail:
Agent: Foam
Ration of Foam: 3%-6%
Working Pressure: 0.5-1.2MPa
Capacity: 100/200/300/400/500L
Hose Color: White
Rate of Flow: 4L/S, 8L/S
Model Number: Py4
Certificate: ISO, CCC
Place of Origin: Chongqing China (Mainland)
Export Markets: Global
Mobile Foam fire extinguisher device parameter
Model | Working Pressure(Mpa) | Rate Of Flow(L/S) | Jetting Time(s) | |||
PQ4 | PQ8 | PQ4 | PQ8 | PQ4&PQ8 | ||
50L | 0.5-1.2 | 4 | 8 | 7 | 3.5 | 2.3 |
100L | 14 | 7 | 4.5 | |||
200L | 28 | 14 | 9 | |||
300L | 41.5 | 20.5 | 13.5 | |||
400L | 55.5 | 27.5 | 18 | |||
500L | 69.5 | 34.5 | 23 | |||
