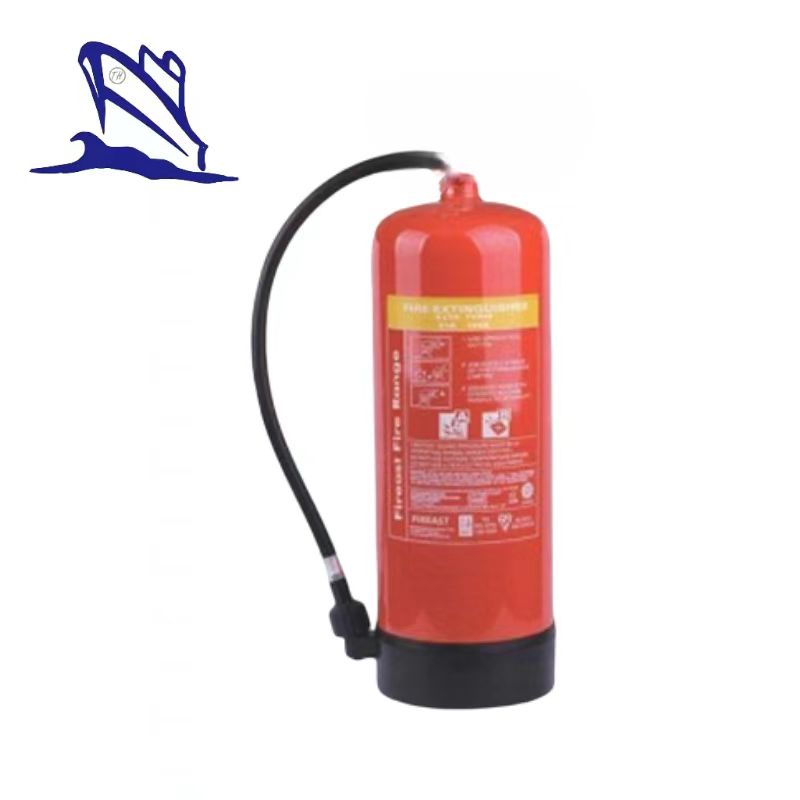

Portable foam fire extinguisher
Portable foam fire extinguisher
Foam fire extinguishers work by covering a burning flammable liquid with a blanket of foam, cutting off the fire’s air supply and preventing the release of flammable vapors. Foam Fire Extinguishers are suitable for the following types of fires: Class A Paper, textiles, wood, most plastics &rubber Class B Flammable liquids.
Our firm can supply 1L-9L Portable foam fire extinguisher. Our products are different from the general suppliers’ and our products are always assumed to have the edge on quality.
Product detail
Material: Stainless steel
Standard: CE standard
Foam fire extinguisher size: 1L,2L,3L,4L,6L,9L,12L
Foam fire extinguisher weight: 1kg, 2kg, 3kg, 4kg, 6kg, 9kg, 12kg
Foam fire extinguisher color: Red or the color you want
Range Of Discharge 6-8m
Duration Of Discharge 21-23 sec.
Portable foam fire extinguisher parameter
Capacity | 1L | 2L | 3L | 4L | 6L | 9L | 12L |
Out-Dia.(mm) | 85 | 110 | 130 | 140 | 160 | 180 | 180 |
Volume (L) | 1.29 | 2.4 | 3.9 | 5.4 | 7.8 | 10.5 | 13.88 |
Cylinder-length (mm) | 270 | 302 | 346 | 410 | 450 | 485 | 621 |
Cylinder Weight (kg) | 0.66 | 1.17 | 1.69 | 2.1 | 2.95 | 3.6 | 4.4 |
Extinguisher weight(kg) | 2.2 | 3.8 | 5 | 6.7 | 9.5 | 14 | 18 |
Filling weight (kg) | 1 | 2 | 3 | 4 | 6 | 9 | 12 |
Working pressure (bar) | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
Test pressure (bar) | 27 | 27 | 27 | 27 | 27 | 27 | 27 |
Temperature Range | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 |
Min Wall-thickness | 0.78 | 1.07 | 1.13 | 1.13 | 1.23 | 1.3 | 1.3 |
Material | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 |
Fire rate | 5A21B | 8A34B | 13A70B | 13A89B | 27A144B | 34A183B | 43A233B |
