FOAM FIRE EXTINGUISHER

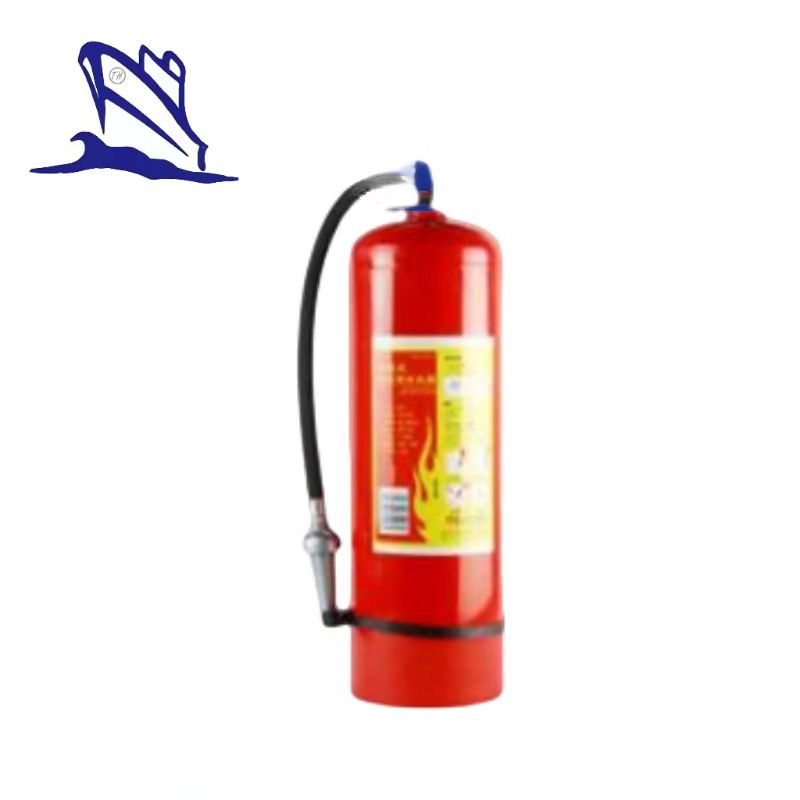

Portable AFFF Foam Fire Extinguisher




Portable AFFF Foam Fire Extinguisher

AFFF (Aqueous Film Forming Foam), used on A and B fires and for vapor suppression. AFFF Foam Fire Extinguisher is the most common type in portable foam extinguishers. AFFF Foam is foam used for fire suppression. Its role is to cool the fire and to coat the fuel, preventing its contact with oxygen, resulting in suppression of the combustion.

This synthetic foam has a low viscosity and spreads rapidly across the surface of most hydrocarbon fuels. A water film forms beneath the foam, which cools the liquid fuel, which stops the formation of flammable vapors. This provides dramatic fire knockdown, an important factor in crash rescue fire fighting.

Product detail:

Name: AFFF Foam Fire extinguisher

Color: Red or the color you want

Working pressure: 14bar

Material: ST12

Extinguishing agent: AFFF foam

Valve: Brass

Inner Painting: anti-water

Usage: Fire extinguisher equipment

Portable AFFF Foam Fire Extinguisher parameter

Type

2L

6L

9L

Cylinder length(mm)

310

470

525

Cylinder weight(Kg)

4.7

3.3

4.6

Extinguisher weight(Kg)

6

10

14

Filler weight

2

6

9

Test Pressure (Bar)

27

27

27

Min wall- thickness(mm)

1.08

1.24

1.3

Discharge time(s)

>35

>35

>35

Discharge Range(m)

6~8

6~8

6~8

Operating temperature(ºC)

0~60

0~60

0~60
