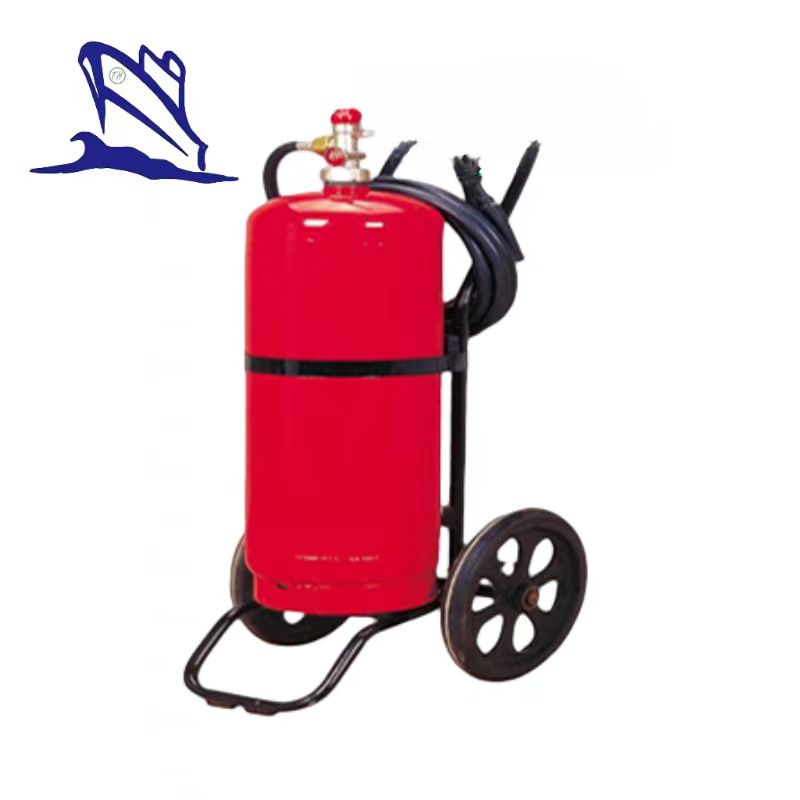

Wheeled Foam Fire Extinguisher
Trolley foam fire extinguisher/Wheeled Foam Fire Extinguisher
Parts description: welded cylinder, valve, with pull pin tamper seal, siphon tube gauge -240-350psi1, cart rack, hose and horn assembly w/discharge gun, two wheels are applicator good for a/b/c fire.
Wheeled Foam fire extinguishers work by covering a burning flammable liquid with a blanket of foam, cutting off the fire’s air supply and preventing the release of flammable vapors. Foam Fire Extinguishers are suitable for the following types of fires: Class A Paper, textiles, wood, most plastics &rubber Class B Flammable liquids
Product detail:
Size: 25L, 45L, 50L, 100L
Foam AFFF : A. 3% B. 6%
Bottom Shape: Trolley
Thickness: 2.3mm Painting
Color: Red or the color you want
Driving Gas: Nitrogen gas
Temperature range (°C): 5~+55
Material: Carbon Steel/ Alloy Steel
Wheeled Foam Fire Extinguisher parameter
Capacity | 25L | 50L | 100L |
Out-Dia.(mm) | 270 | 320 | 406 |
Cylinder Length(mm) | 625 | 875 | 1100 |
Volume(L) | 30 | 59 | 124 |
Full Weight(kg) | 60 | 95 | 150 |
Temperature Range(°C) | 0~+55 | 0~+55 | 5°C~+60°C |
Working pressure(bar) | 15 | 15 | 15 |
Test pressure(bar) | 35 | 35 | 35 |
Fire class | 55A 1B | 55A 11BC | 55A 11BC |
