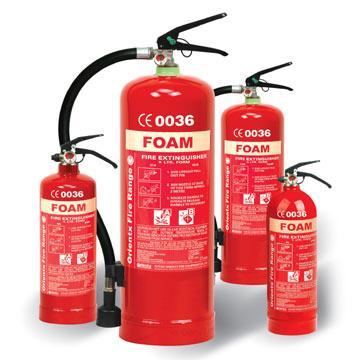

Foam fire extinguisher
Foam fire extinguisher
The foam was a combination of the products of the chemical reactions, when the solutions were mixed, usually by inverting the unit; the two liquids reacted to create a frothy foam, and carbon dioxide gas. The gas expelled the foam in the form of a jet.
Foam Fire Extinguishers are suitable for the following types of fires: Class A Paper, textiles, wood, most plastics & rubber Class B Flammable liquids.

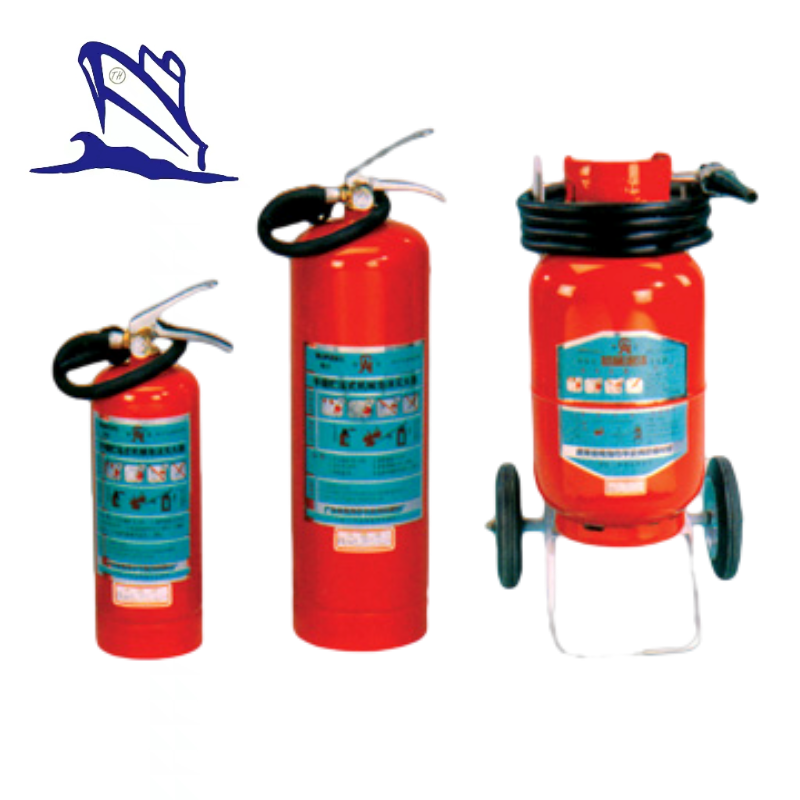

There are two main types of Foam fire extinguisher: portable type and wheeled type. Our firm can offer 1-12L portable Foam fire extinguisher, and 25kg, 50kg, 100kg wheeled foam fire extinguisher.
Portable foam fire extinguisher parameter
Capacity | 1L | 2L | 3L | 4L | 6L | 9L | 12L |
Out-Dia.(mm) | 85 | 110 | 130 | 140 | 160 | 180 | 180 |
Volume (L) | 1.29 | 2.4 | 3.9 | 5.4 | 7.8 | 10.5 | 13.88 |
Cylinder-length (mm) | 270 | 302 | 346 | 410 | 450 | 485 | 621 |
Cylinder Weight (kg) | 0.66 | 1.17 | 1.69 | 2.1 | 2.95 | 3.6 | 4.4 |
Extinguisher weight(kg) | 2.2 | 3.8 | 5 | 6.7 | 9.5 | 14 | 18 |
Filling weight (kg) | 1 | 2 | 3 | 4 | 6 | 9 | 12 |
Working pressure (bar) | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
Test pressure (bar) | 27 | 27 | 27 | 27 | 27 | 27 | 27 |
Temperature Range | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 | 0~60 |
Min Wall-thickness | 0.78 | 1.07 | 1.13 | 1.13 | 1.23 | 1.3 | 1.3 |
Material | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 | SUS304 |
Fire rate | 5A21B | 8A34B | 13A70B | 13A89B | 27A144B | 34A183B | 43A233B |
Wheeled foam fire extinguisher parameter
Capacity | 25L | 50L | 100L |
Out-Dia.(mm) | 270 | 320 | 406 |
Cylinder Length(mm) | 625 | 875 | 1100 |
Volume(L) | 30 | 59 | 124 |
Full Weight(kg) | 60 | 95 | 150 |
Temperature Range(°C) | 0~+55 | 0~+55 | 5°C~+60°C |
Working pressure(bar) | 15 | 15 | 15 |
Test pressure(bar) | 35 | 35 | 35 |
Fire class | 55A 1B | 55A 11BC | 55A 11BC |
