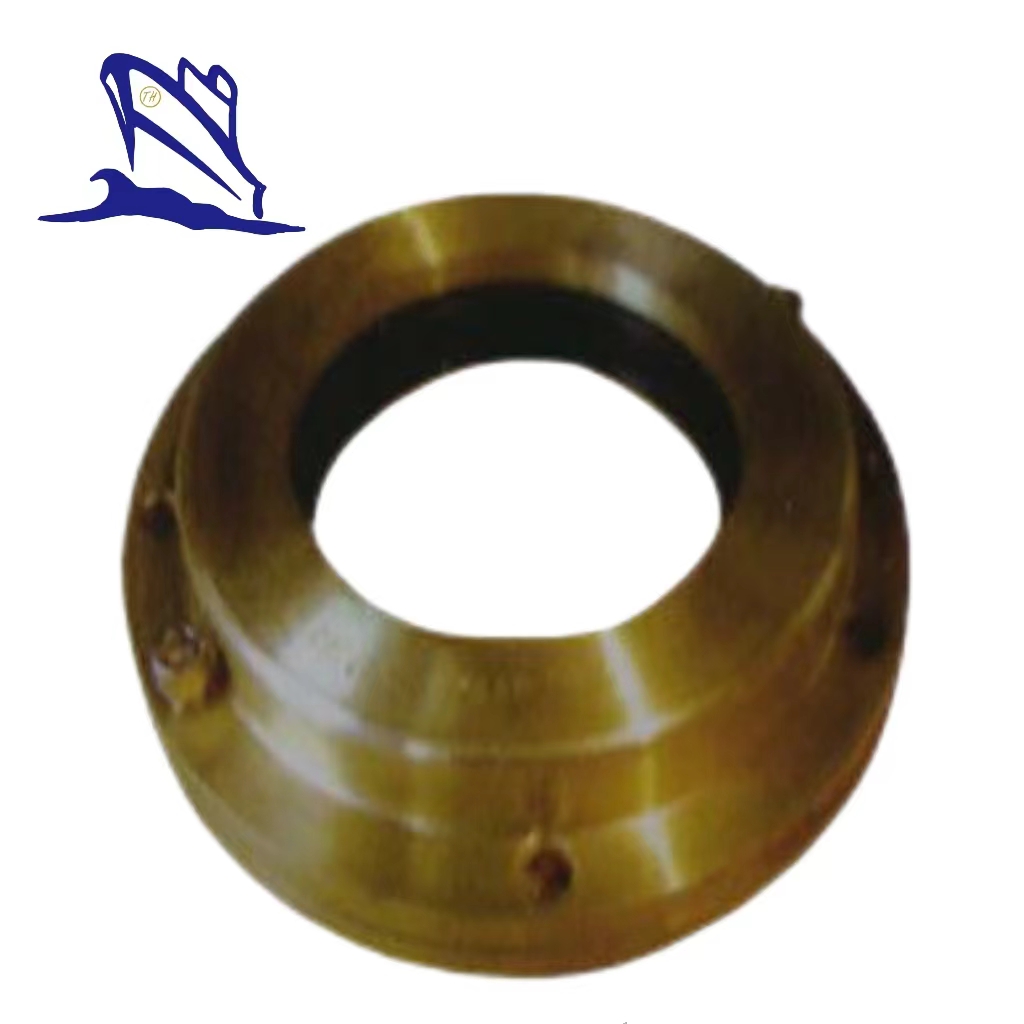

DMB Type Rudder Stock Sealing Apparatus
DMB Type Rudder Stock Sealing Apparatus

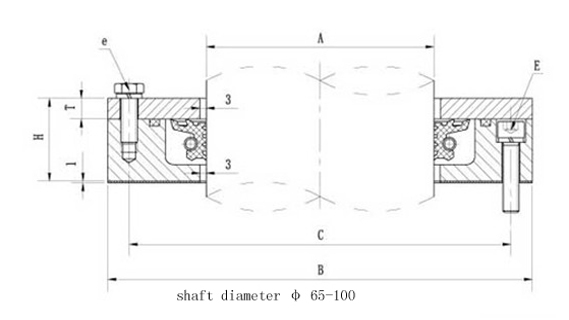

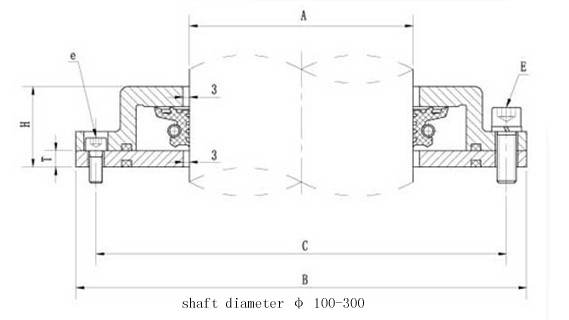

This rudder stock sealing apparatus is compact in structure and easy to be maintained. It is suitable for the sealing between the rudder stock and hull. There are two types of this product. One is with shaft diameter ø100～ø300, the other is with shaft diameter ø65～ø100. This product is approved by CCS, ABS, BV, GL, etc. The sizes in the following table are for reference only. The product can be manufactured according to clients’ requirement.
Specification | Dimensions (mm) | Weight (kg) | ||||||
A | B | C | E | H | T | e | ||
80 | 65/70/75/80 | 200 | 225 | 4-M10×45 | 56 | 10 | 4-M10×25 | 13 |
100 | 85/90/95/100 | 220 | 190 | 4-M10×45 | 56 | 10 | 4-M10×25 | 15 |
130 | 101~130 | 250 | 225 | 6-M12×35 | 50 | 10 | 2-M8×20 | 9 |
160 | 131~160 | 280 | 255 | 6-M12×35 | 50 | 10 | 2-M8×20 | 11 |
190 | 161~190 | 310 | 285 | 6-M12×40 | 52 | 10 | 2-M10×25 | 12 |
220 | 191~220 | 358 | 324 | 6-M12×40 | 52 | 10 | 2-M10×25 | 16 |
260 | 221~260 | 404 | 370 | 6-M12×40 | 55 | 10 | 2-M10×25 | 19 |
300 | 261~300 | 444 | 410 | 6-M12×40 | 55 | 10 | 2-M10×25 | 20 |
