MARINE RUDDER PARTS

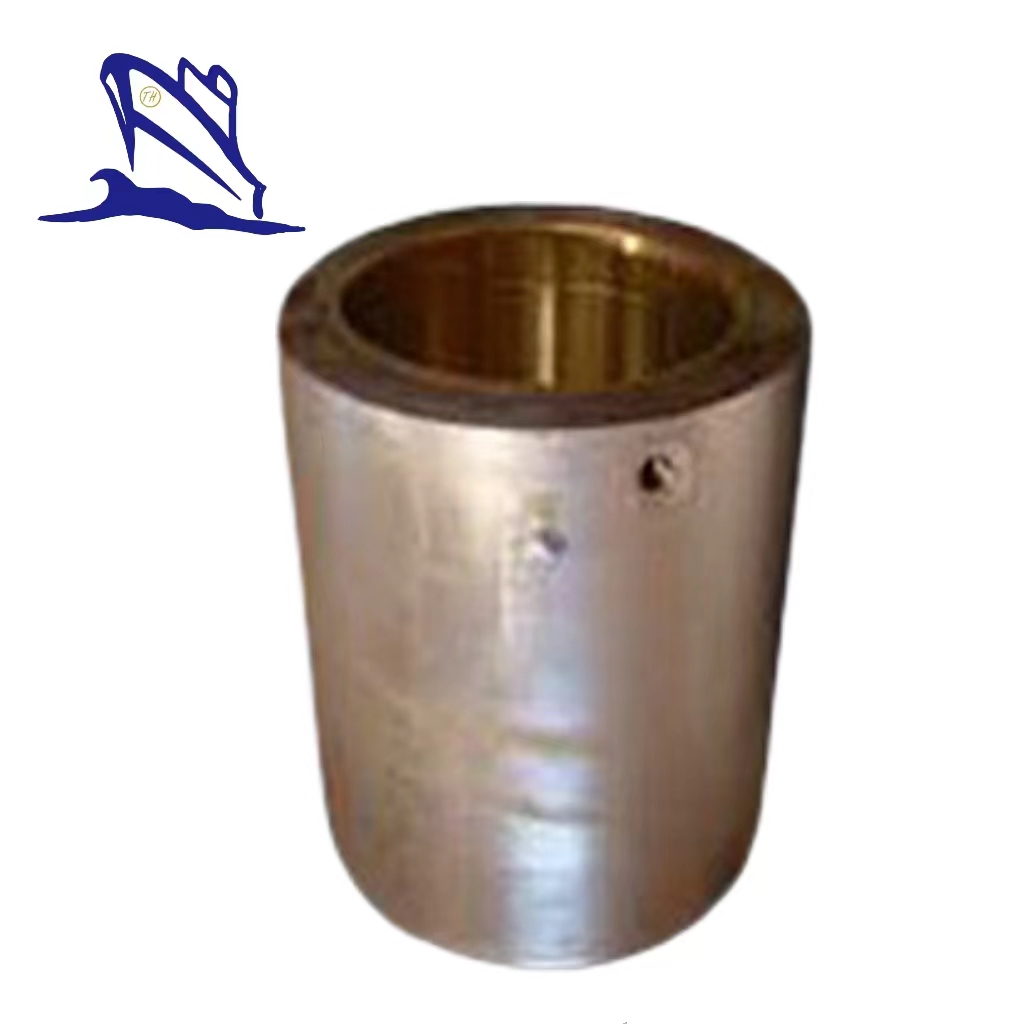

**Lower Rudder Carrier CB*3146**

Lower Rudder Carrier CB*3146

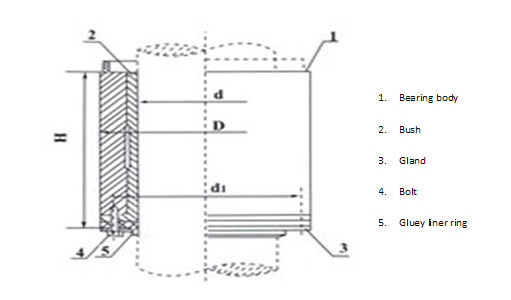

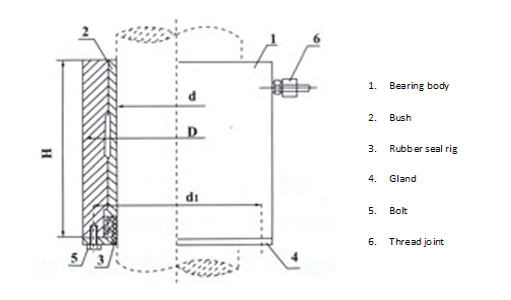

This product is marine lower rudder bearing approved by CB*3146-83 standard. It can be used together with CB*3145-83 upper rudder bearer. There are two types of this lower rudder carrier: type-A non-watertight lower rudder bearing and type-B watertight lower rudder bearing. Certificates about the product are CCS, BV, GL, LR, ABS, etc. We can offer the appointed one according to customer’s need.

Model		d	D	d₁	H	Bolt		Weight (kg)
Model		mm				Qty	Dia.	Weight (kg)
A	60	60	122	102	112	6	M60	8.0
	70	70	132	112	127	6	M60	10.1
	80	80	142	122	142	6	M60	14.3
	90	90	160	138	157	6	M6	17.4
	100	100	180	156	170	6	M6	22.8
	110	110	190	164	185	6	M8	28.5
	120	120	200	174	200	6	M8	34.9
	130	130	224	198	213	6	M8	41.7
	140	140	234	204	228	6	M8	48.4
	150	150	244	214	243	6	M10	55.8
	160	160	254	224	258	6	M10	63.3
	180	180	274	244	288	6	M10	78.0
	200	200	308	268	316	6	M10	95.4
B	60	60	122	102	120	6	M8	8.8
	70	70	132	112	135	6	M8	10.5
	80	80	142	122	150	6	M8	14.8
	90	90	160	138	165	6	M8	19.5
	100	100	180	156	180	6	M8	24.9
	110	110	190	164	195	6	M8	28.9
	120	120	200	174	210	6	M8	35.4
	130	130	224	198	225	6	M8	42.1
	140	140	234	204	240	6	M8	49.4
	150	150	244	214	255	6	M10	57.3
	160	160	254	224	270	6	M10	65.8
	180	180	274	244	300	6	M10	87.2
	200	200	308	268	330	6	M10	112.6
	220	220	328	292	360	6	M12	137.2
	240	240	348	312	390	6	M12	165.5
	260	260	368	332	420	6	M12	187.7
	280	280	402	362	450	6	M12	233.7
	300	300	422	378	480	6	M12	264.0
