Marine Cast Bronze Hose Angle Globe Valve JIS F7334B 5K/10K
Marine Cast Bronze Hose Angle Globe Valve JIS F7334B 5K/10K ：
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:5k/10k.
5.DN:
- 5k:15mm-50mm;
- 10k:15mm-65mm.
6.Main material:
- Body/Bonnet:BC6;
- Seat:BC6;
- Stem:BRASS;
- Disc:BC6.
7.Application:Water piping.
8.Function:Such valves are used for fire control.

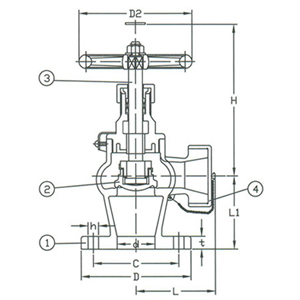

9.Specification of Marine Cast Bronze Hose Angle Globe Valve JIS F7334B 5K/10K ：
Marine Cast Bronze Hose Angle Globe Valve JIS F7334B 5K:
DN/mm | Flange diam./D(mm) | Flange pitch/C(mm) | Flange hole/n*d(mm) | Weight/kg |
15 | 80 | 60 | 4xΦ12 | 2.41 |
25 | 95 | 75 | 4xΦ12 | 3.44 |
40 | 120 | 95 | 4xΦ15 | 5.91 |
50 | 130 | 105 | 4xΦ15 | 11.00 |
Marine Cast Bronze Hose Angle Globe Valve JIS F7334B 10K ：
DN/mm | Flange diam./D(mm) | Flange pitch/(mm) | Flange hole/n*d(mm) | weight/kg |
15 | 95 | 70 | 4xΦ15 | 2.72 |
25 | 125 | 90 | 4xΦ19 | 4.04 |
40 | 140 | 105 | 4xΦ19 | 8.09 |
50 | 155 | 120 | 4xΦ19 | 14.30 |
65 | 175 | 140 | 4xΦ19 | 23.00 |
