JIS MARINE VALVE

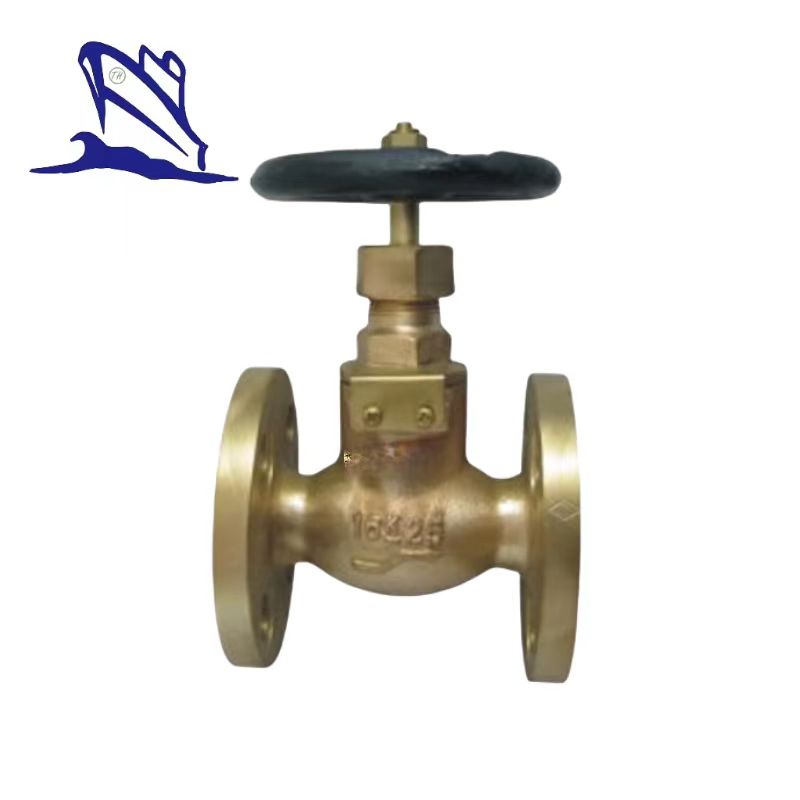

Marine Bronze Screw Down Check Globe Valve JIS F7351 5K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5K.

5.DN:15mm-40mm.

6.Main material:

• Body/Bonnet:BC6;
• Seat:BC6;
• Stem:H62;
• Disc:BC6.

7.Application:Oil piping and water piping.

8.Fnction:Such valves are used for on-off duty and preventing refluence.

9.Specification of Marine Bronze Screw Down Check Globe Valve JIS F7351 5K :

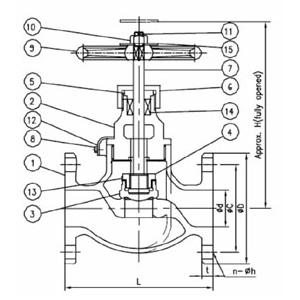

Code	Size	Face to Face (L)	Flange diam. (D)	Pitch (C)	Hole (nxd)	Weight
	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
751051	15	100	80	60	4XD12	1.96
751052	20	110	85	65	4XD12	2.77
751053	25	120	95	75	4XD12	3.41
751054	32	140	115	90	4XD15	4.86
751055	40	160	120	95	4XD15	6.30
