JIS MARINE VALVE

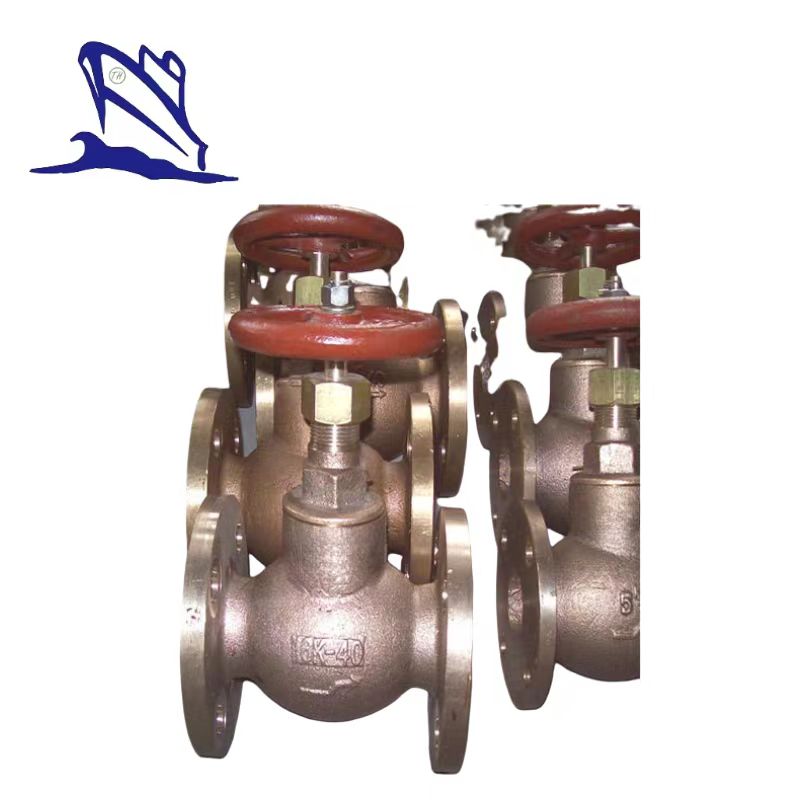

Marine Bronze SDNR Globe Valve JIS F7409 16K:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End standard:Flange.

4.PN:16k.

5.DN:15mm-40mm.

6.Main material:

• Body/Bonnet:BC6;
• Seat:BC6;
• Stem:H62;
• Disc:BC6.

7.Application:Oil piping and water piping.

8.Function:Such valve are used for on-off duty and regulating the flow rate.

9.Specification of Marine Bronze SDNR Globe Valve JIS F7409 16k:

Code	Size	Face to Face (L)	Flange diam. (D)	Pitch (C)	Hole (nxd)	Weight
	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
751071	15	110	95	70	4XD15	2.70
751072	20	120	100	75	4XD15	3.63
751073	25	130	125	90	4XD19	5.09
751074	32	160	135	100	4XD19	6.77
751075	40	180	140	105	4XD19	8.25
