MARINE RUDDER PARTS

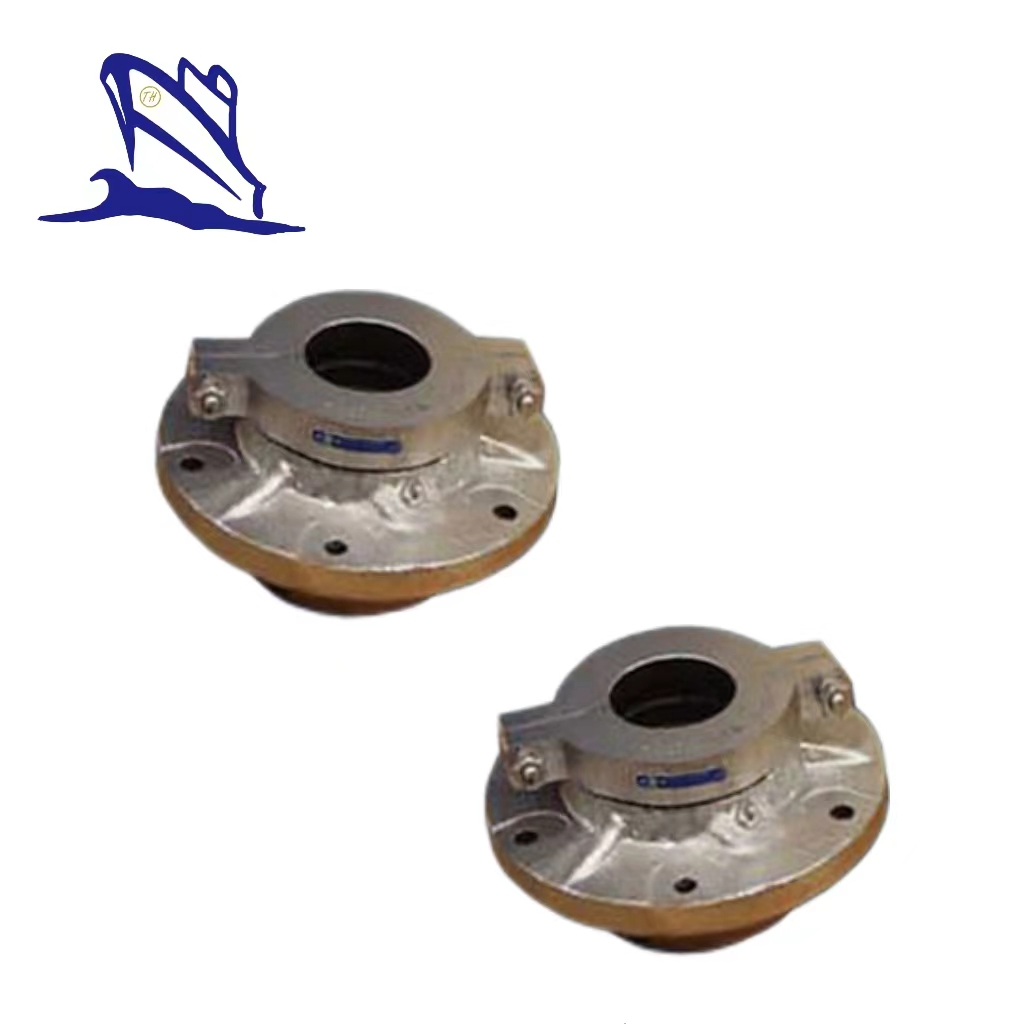

**Upper Rudder Carrier CB*3145-83**

Upper Rudder Carrier CB*3145-83

This product is marine upper rudder carrier. It is mainly suitable for various inland water vessels. Approved by CB*3145-83 standard, it is used together with CB*3146-83 lower rudder bearing. Certificates about this upper rudder bearing like CCS, ABS, BV, GL, LR can be provide according to client’s request. If you are interested in our products, please be free to contact us. We will reply you as soon as possible.

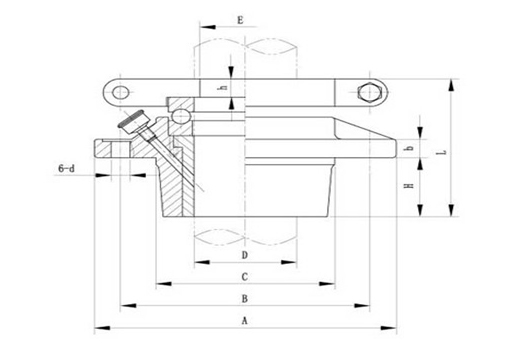

Model	D	A	B	C	E	L	H	b	h	Bolt		Weight (kg)
Model	mm									Quantity	Diameter	Weight (kg)
40	40	146	120	80	34	80	34	12	14	6	M10	2.6
50	50	160	134	92	44	92	43	14	14	6	M10	4.8
60	60	188	158	110	52	106	45	14	16	6	M12	6.1
70	70	206	170	122	62	114	51	16	16	6	M12	9.1
80	80	235	199	135	70	124	65	16	18	6	M12	13.2
90	90	260	220	154	80	145	68	18	20	6	M16	21.0
100	100	298	250	174	88	158	70	20	20	6	M16	26.4
110	110	320	272	188	98	168	80	20	20	6	M16	32.3
120	120	342	294	202	106	183	90	22	24	6	M16	40.4
140	140	382	322	230	126	210	110	21	21	6	M20	55.8
160	160	424	354	258	144	239	120	26	28	6	M20	66.2
180	180	456	386	286	164	364	130	28	28	6	M20	89.0
200	200	490	422	318	180	294	140	30	32	6	M24	125.4
220	200	513	446	338	20	315	155	30	32	6	M24	154.0
