MARINE RUDDER PARTS

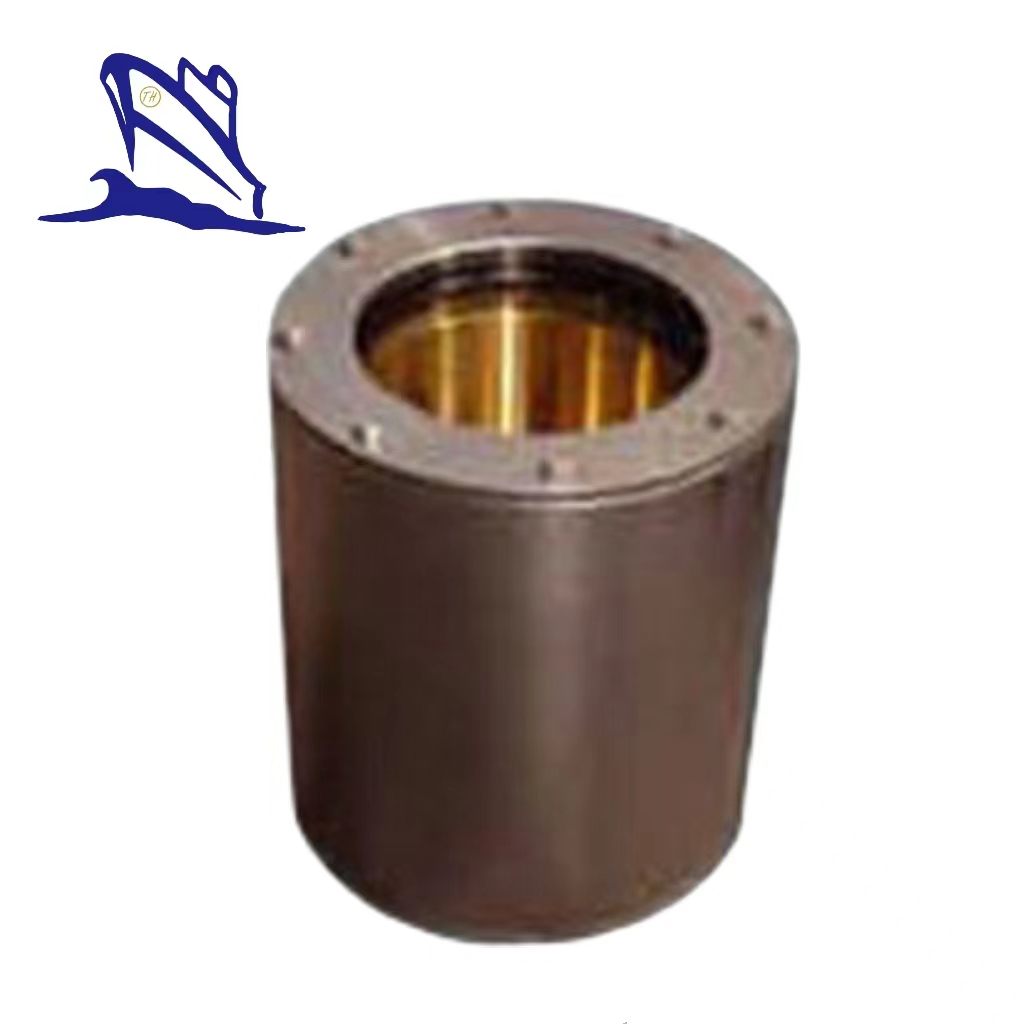

**Gliding Watertight Lower Rudder Carrier CB*790-87 (Type A)**

Gliding Watertight Lower Rudder Carrier CB*790-87 (Type A)

This product is marine gliding watertight lower rudder bearer. We can supply two types of this kind of lower rudder bearing: type A and type B. This one is the type-A sliding watertight lower rudder carrier. It is approved by the standard of CB*790-87. It can be used together with the CB*789-87 upper rudder bearing. Certificates like CCS, BV, GL, LR, ABS, can be provided according to customer’s request.

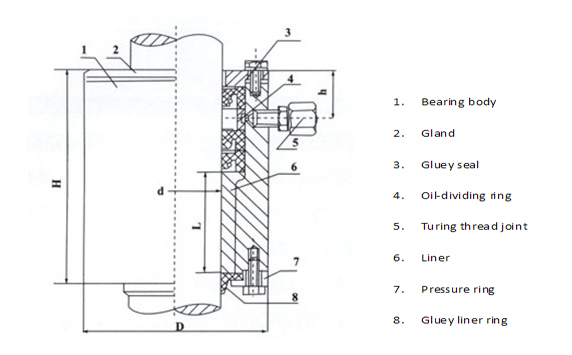

Type		Dimensions (mm)
Type		d	D	H	L	h
A	50	50	100	123	60	26
	60	60	110	136	70	28
	70	70	125	152	85	28
	80	80	140	162	95	28
	90	90	155	177	110	28
	100	100	160	216	130	37
	110	110	170	226	140	37
	120	120	190	236	150	37
	130	130	205	246	160	37
	140	140	220	255	170	37
	150	150	240	282	195	37
	160	160	250	297	210	37
	170	170	260	307	220	37
	180	180	272	330	235	40
	190	190	292	345	250	40
	200	200	310	359	260	44
	220	220	340	385	286	44
	240	240	370	411	312	44
	260	260	400	448	338	45
	280	280	430	474	364	50
	300	300	456	500	390	50
	320	320	486	530	420	50
	340	340	512	552	442	50
	360	360	540	580	470	50
	380	380	568	605	495	50
	400	400	600	630	520	50
	420	420	634	687	550	62.5
	440	440	662	712	575	62.5
	460	460	690	737	600	62.5
	480	480	720	762	625	62.5
	500	500	750	787	650	62.5
