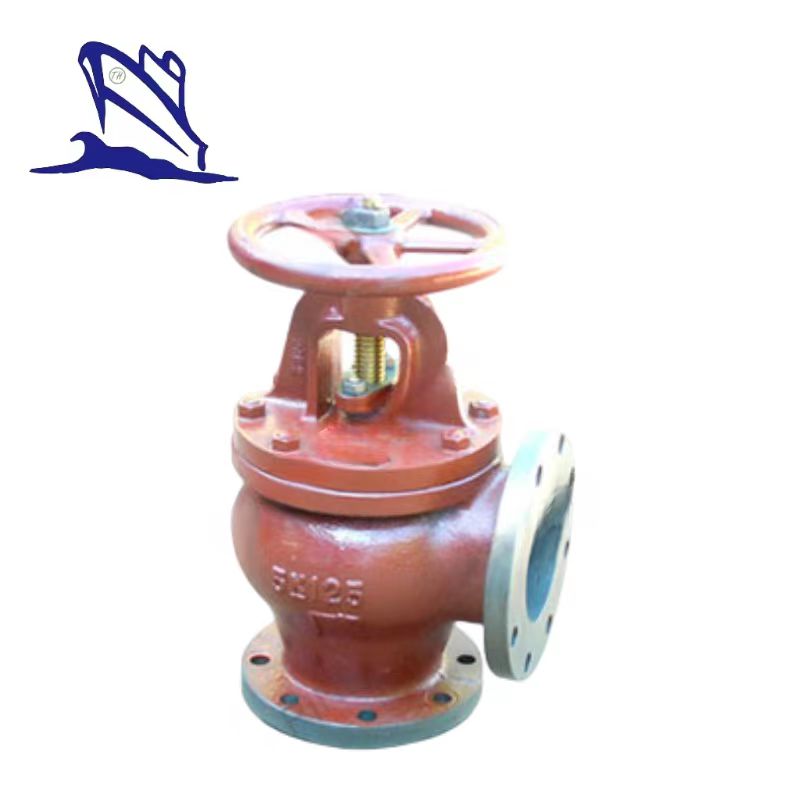

Marine Cast Iron Angle Valve JIS F7306 5K
Marine Cast Iron Angle Valve JIS F7306 5K
| Code | Size | L1 | Flange diam. (D) | Pitch (C) | Hole (nxd) | t | H | Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) | |
| 750216 | 50 | 100 | 130 | 105 | 4-D15 | 16 | 240 | 12.90 |
| 750217 | 65 | 115 | 155 | 130 | 4-D15 | 18 | 255 | 18.20 |
| 750218 | 80 | 130 | 180 | 145 | 4-D19 | 18 | 265 | 23.40 |
| 750219 | 100 | 150 | 200 | 165 | 8-D19 | 20 | 310 | 33.70 |
| 750220 | 125 | 170 | 235 | 200 | 8-D19 | 20 | 330 | 46.20 |
| 750221 | 150 | 190 | 265 | 230 | 8-D19 | 22 | 380 | 63.40 |
| 750222 | 200 | 220 | 320 | 280 | 8-D23 | 24 | 450 | 105.00 |
| 750223 | 250 | 275 | 385 | 345 | 12-D23 | 26 | 540 | 176.00 |
| 750224 | 300 | 310 | 430 | 390 | 12-D23 | 28 | 610 | 243.00 |
| 750225 | 350 | 360 | 480 | 435 | 12-D25 | 30 | 690 | 335.00 |
| 750225 | 400 | 395 | 540 | 495 | 16-D25 | 30 | 770 | 459.00 |
