JIS MARINE VALVE

Marine Cast Steel Globe Valve JIS F7311 5K ：

1.Test standard:JISF7400.

2.End standard:JIB2220.

3.End type:Flange.

4.PN:5k.

5.DN:50mm-300mm.

6.Main material:

• Body/Bonnet:SC230-450;
• Seat:SS410/BC6;
• Stem:SS410/H62;
• Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

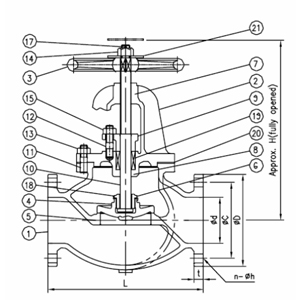

9.Specification of Marine Cast Steel Globe Valve JIS F7311 5K ：

Size	L	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	H	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
50	210	130	105	4xΦ15	16	270	14.70
65	250	155	130	4xΦ15	18	300	21.30
80	280	180	145	4xΦ19	18	310	27.70
100	340	200	165	8xΦ19	20	360	40.80
125	410	235	200	8xΦ19	20	390	57.60
150	480	265	230	8xΦ19	22	445	80.30
200	570	320	280	8xΦ23	24	530	139.00
250	740	385	345	12xΦ23	26	650	230.00
300	840	430	390	12xΦ23	28	740	309.00
