JIS MARINE VALVE

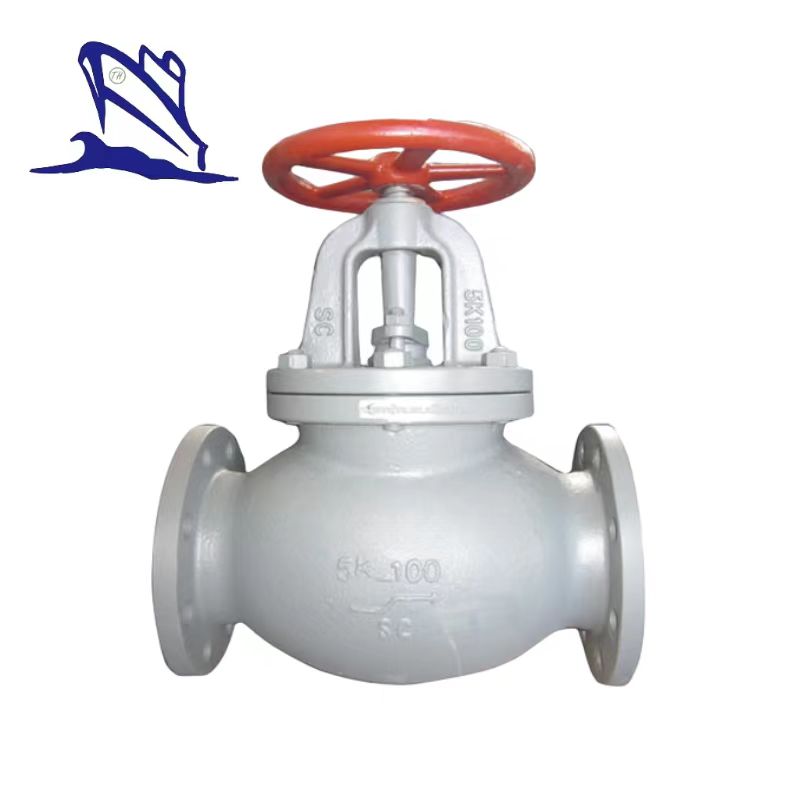

Marine Cast Steel Screw Down Check Globe Valve JIS F7311C 5K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type;Flange.

4.PN:5k.

5.DN:50mm-300mm.

6.Main material:

• Body/Bonnet::ZG230-450;
• Seat:SS410/BC6;
• Stem:SS410/H62;
• Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Steel Screw Down Check Globe Valve JIS F7311C 5K :

Size	L	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	H	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
50	210	130	105	4-D15	16	270	14.80
65	250	155	130	4-D15	18	300	21.30
80	280	180	145	4-D19	18	310	27.60
100	340	200	165	8-D19	20	360	40.40
125	410	235	200	8-D19	20	390	57.90
150	480	265	230	8-D19	22	445	80.90
200	570	320	280	8-D23	24	530	139.00
250	740	385	345	12-D23	26	650	243.00
300	840	430	390	12-D23	28	740	320.00
