JIS MARINE VALVE

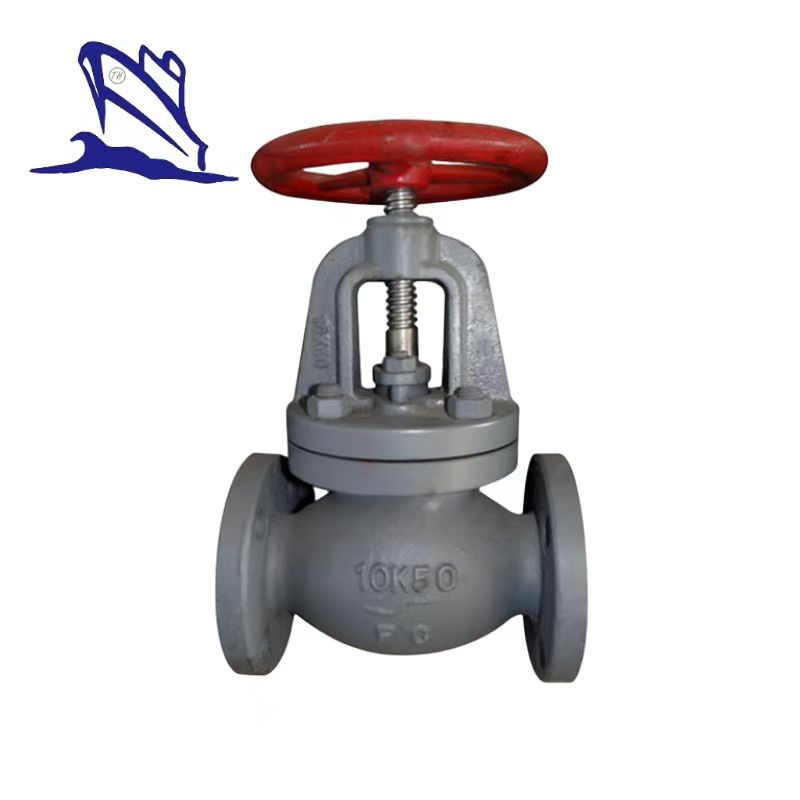

Marine Cast Iron Screw Down Check Globe Valve JIS F7375 10K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PM:10k.

5.DN:50mm-300mm.

6.Main material:

• Body/Bonnet:HT200;
• Seat:SS410/BC6;
• Stem:SS410/H62;
• Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

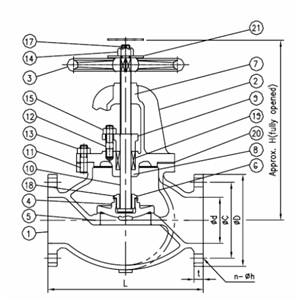

9.Specification of Marine Cast Iron Screw Down Check Globe Valve JIS F7375 10K :

Code	Size	L	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	H	Weight
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
751131	50	220	155	120	4-D19	16	270	19.90
751132	65	270	175	140	4-D19	18	300	28.60
751133	80	300	185	150	8-D19	18	310	32.50
751134	100	350	210	175	8-D19	20	360	48.70
751135	125	420	250	210	8-D23	20	390	73.00
751136	150	490	280	240	8-D23	22	445	104.00
751137	200	570	330	290	12-D23	24	530	161.00
751138	250	740	400	355	12-D25	26	650	304.00
751139	300	840	445	400	16-D25	28	740	458.00
