JIS MARINE VALVE

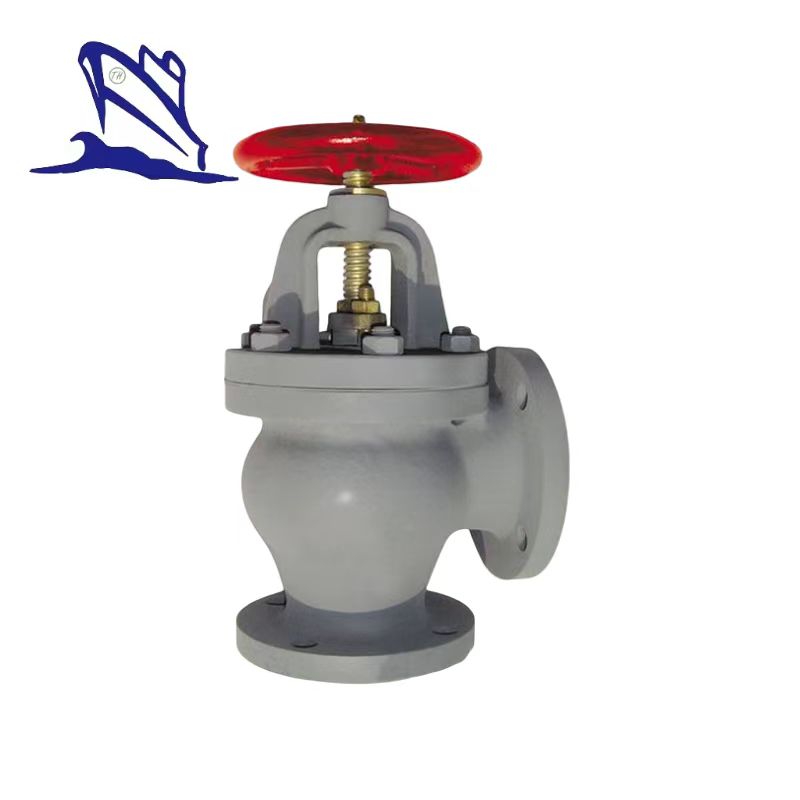

Marine Cast Iron Screw Down Angle Valve JIS F7376 10K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:10k.

5.DN:50mm-400mm.

6.Main material:

• Body/Bonnet:HT200;
• Seat:SS410/BC6;
• Stem:SS410/H62;
• Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are ued for on-off duty and regulating the flow rate.

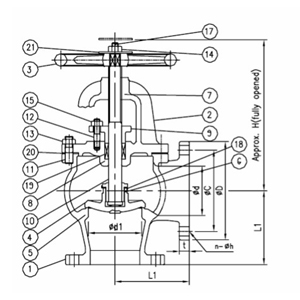

9.Specification of Marine Cast Iron Screw Down Angle Valve JIS F7376 10K :

Code	Size	L1	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	H	Weight
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
751131	50	120	155	120	4-D19	20	255	18.20
751132	65	130	175	140	4-D19	22	270	25.30
751133	80	140	185	150	8-D19	22	275	27.50
751134	100	160	210	175	8-D19	24	315	40.60
751135	125	180	250	210	8-D23	24	360	69.80
751136	150	205	280	240	8-D23	26	405	81.20
751137	200	230	330	290	12-D23	26	475	124.00
751138	250	290	400	322	12-D25	30	570	211.00
751139	300	320	445	400	16-D25	32	645	293.00
751140	350	360	490	445	16-D25	34	710	386.00
751141	400	420	560	510	16-D27	36	790	544.00
