JIS MARINE VALVE

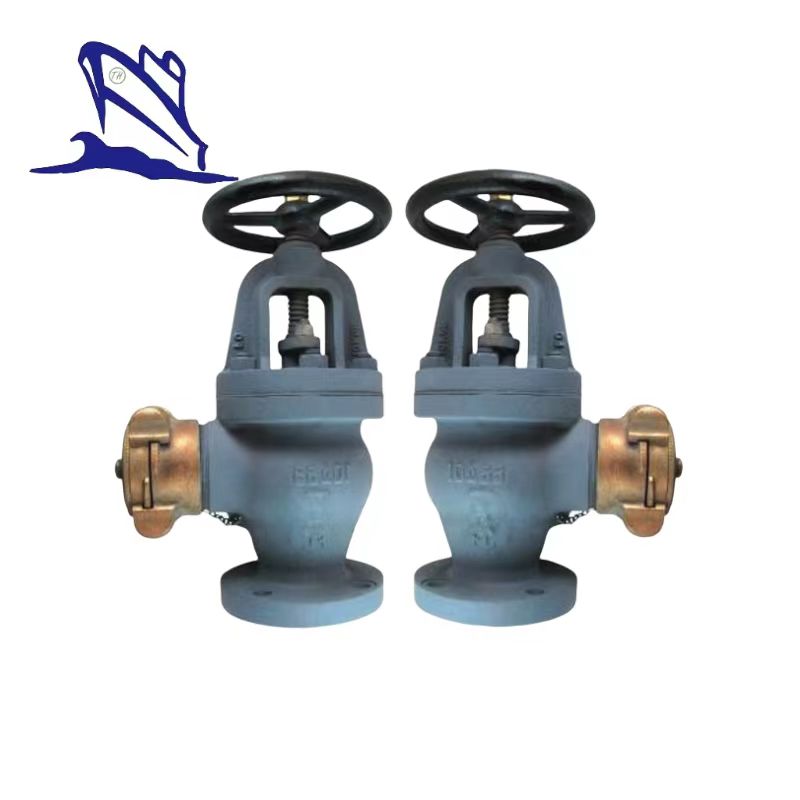

Marine Cast Iron Angle Hose Valve JIS F7333B 5K/10K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k/10k.

5.DN:50mm/65mm.

6.Main material:

• Body/Bonnet:FC20;
• Seat:BC6/SS410;
• Stem:BRASS/SS410;
• Disc:BC6/SS410.

7.Application:Water piping.

8.Function:Such valves are used for fire control.

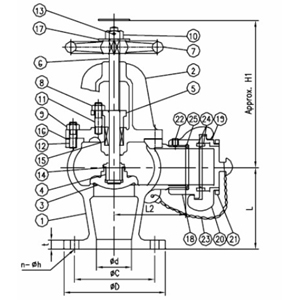

9.Specification of Marine Cast Iron Angle Hose Valve JIS F7333B 5K/10K :

Code	Size	L	L2	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	H1	Weight
	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
751734	5K50	100	110	130	105	4xΦ15	16	255	12.8
751736	10K50	120	115	155	120	4xΦ19	20	255	17.0
751737	10K65	130	125	175	140	4xΦ19	22	270	24.3
