JIS MARINE VALVE

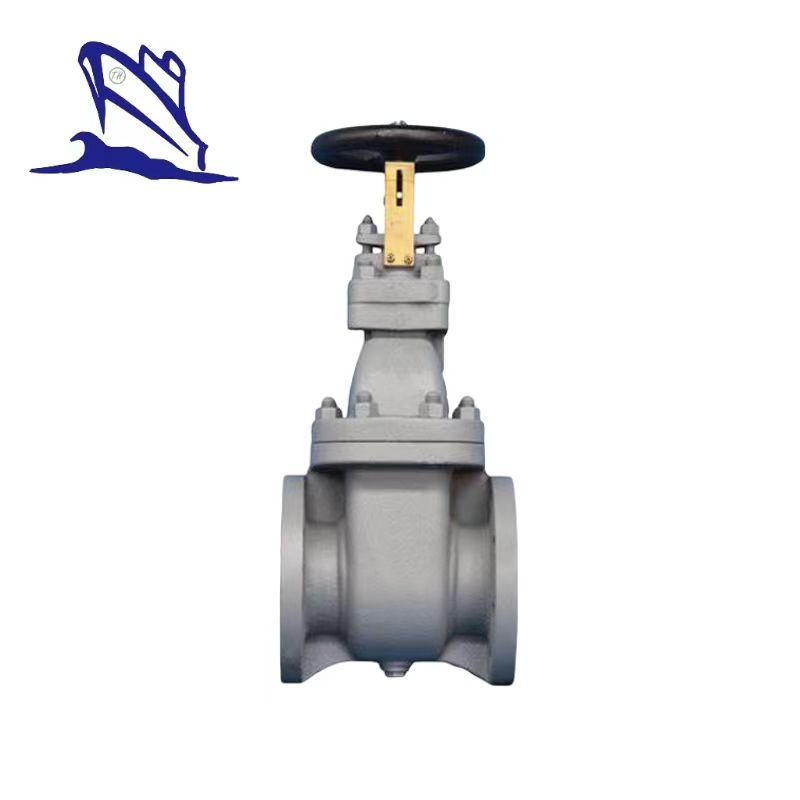

Marine cast valve iron Gate Valve JIS F7363 5k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k.

5.DN:50mm-600mm.

6.Main material:

• Body/Bonnet:HT200;
• Seat:SS410/BC6;
• Stem:SS410/H62;
• Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty.

9.Specification of Marine cast valve iron Gate Valve JIS F7363 5k:

Size	L	Flange diam. (D)	Pitch (C)	Hole (nxd)	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
50	180	130	105	4-15	13.5
65	190	155	130	4-15	19.0
80	200	180	145	4-19	24.2
100	230	200	165	8-19	35.3
125	250	235	200	8-19	48.1
150	270	265	230	8-19	65.3
200	290	320	280	8-23	103.0
250	330	385	345	12-23	164.0
300	370	430	390	12-23	236.0
350	410	480	435	12-25	307.0
400	470	540	495	16-25	405.0
450	500	605	555	16-25	556.0
500	550	655	605	20-25	700.0
550	600	720	665	20-27	878.0
600	660	770	715	20-27	1120.0
