JIS MARINE VALVE

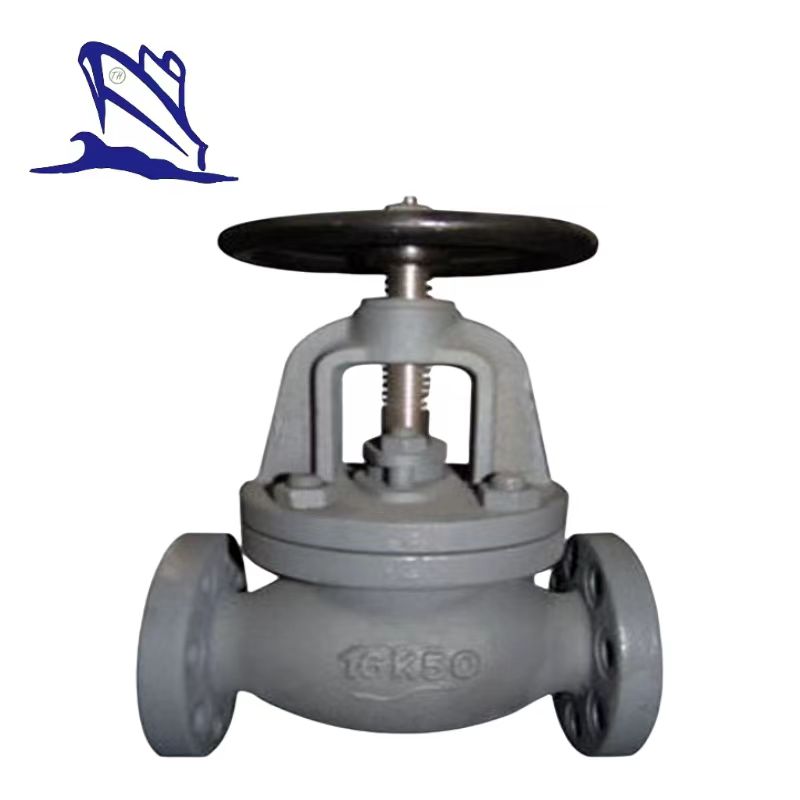

Marine Cast Iron Screw Down Check Globe ValveJIS F7377 16K ：

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:16k.

5.DN:50mm-200mm.

6.Main material:

• Body/Bonnet:HT200;
• Seat:SS410/BC6;
• Stem:SS410/H62;
• Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

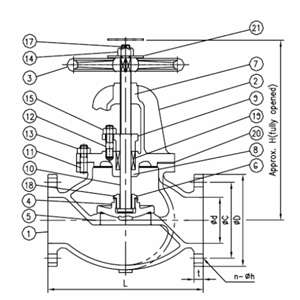

9.Specification of Marine Cast Iron Screw Down Check Globe ValveJIS F7377 16K ：

Size	L	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	H	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
50	220	155	120	8-19	20	285	19.6
65	270	175	140	8-19	22	310	28.2
80	300	200	160	8-23	24	340	40.5
100	350	225	185	8-23	26	385	56.9
125	430	270	225	8-25	26	455	89.5
150	500	305	260	12-25	28	510	123.0
200	570	350	305	12-25	30	630	188.0
