JIS MARINE VALVE

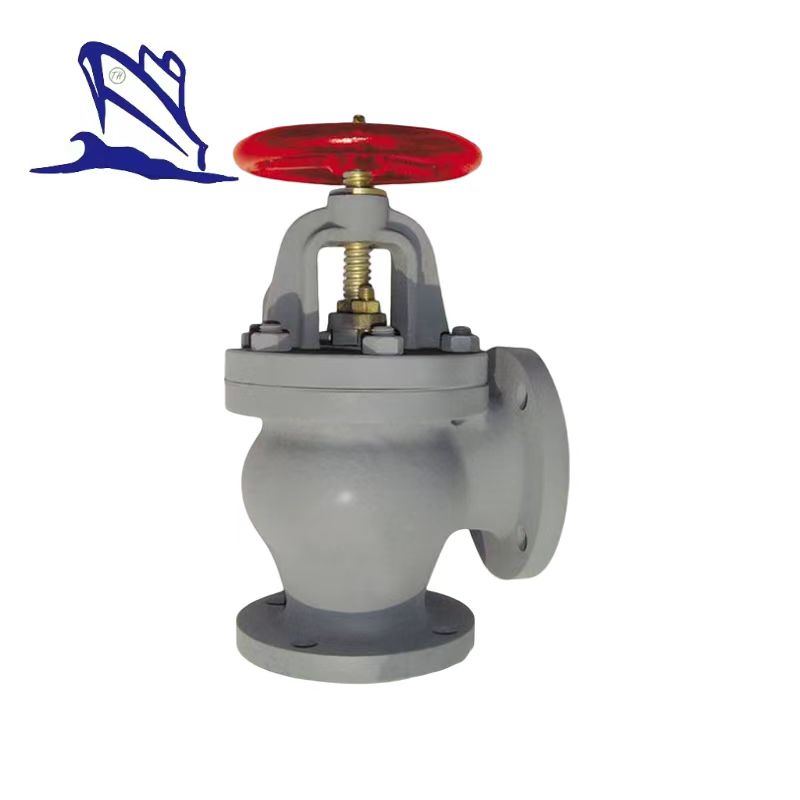

Marine Cast Iron Screw Down Check Angle Valve JIS F7378 16K :

1.Test standard:JISF7400.
2.End standard:JISB2220.

3.End type:Flange.

4.PN:16k.

5.DN:50mm-200mm.

6.Main material:

• Body/Bonnet:HT200;
• Seat:SS410/BC6;
• Stem:SS410/H62;
• Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

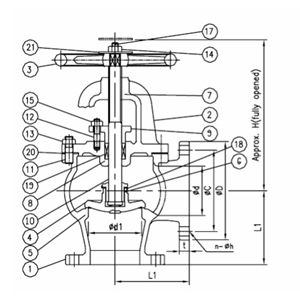

9.Specification of Marine Cast Iron Screw Down Check Angle Valve JIS F7378 16K :

Size	L1	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	H	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
50	120	155	120	8xΦ19	20	255	18.0
65	130	175	140	8xΦ19	22	270	25.0
80	150	200	160	8xΦ23	24	295	35.7
100	170	225	185	8xΦ23	26	330	49.2
125	200	270	225	8xΦ25	26	390	76.1
150	225	305	260	12xΦ25	28	435	103.0
200	250	350	305	12xΦ25	30	540	155.0
