JIS MARINE VALVE

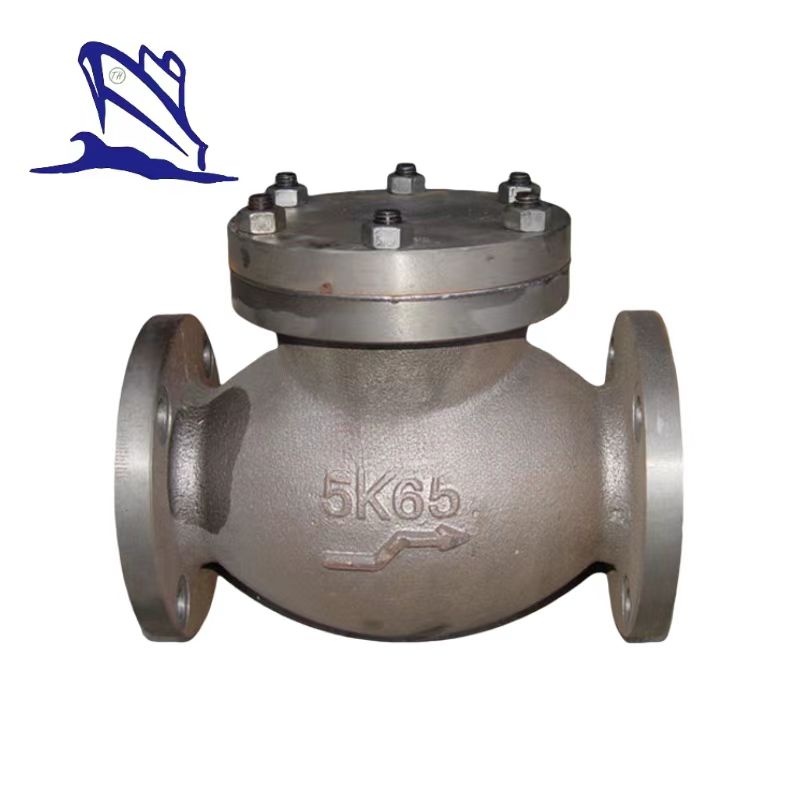

Marine Cast Iron Lift Check Globe Valve JIS F7358 5K :

1.Test standard:JISF7100.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k.

5.DN:50mm-200mm.

6.Main material:

• Body/Bonnet:HT200;
• Seat:SS410/BC6;
• Disc:SS410/BC6.

7.Application:Oil piping and water piping.

8.Function:Such valves are used for preventing refluence

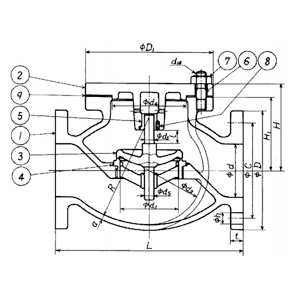

9.Specification of Marine Cast Iron Lift Check Globe Valve JIS F7358 5K :

Size	L	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	H	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
50	210	130	105	4-15	16	107	11.3
65	250	155	130	4-15	18	124	16.8
80	280	180	145	4-19	18	129	23.2
100	240	200	165	8-19	20	146	32.5
125	410	235	200	8-19	20	166	48.1
150	480	265	230	8-19	22	188	67.9
200	570	320	280	8-23	24	212	115.0
