JIS MARINE VALVE

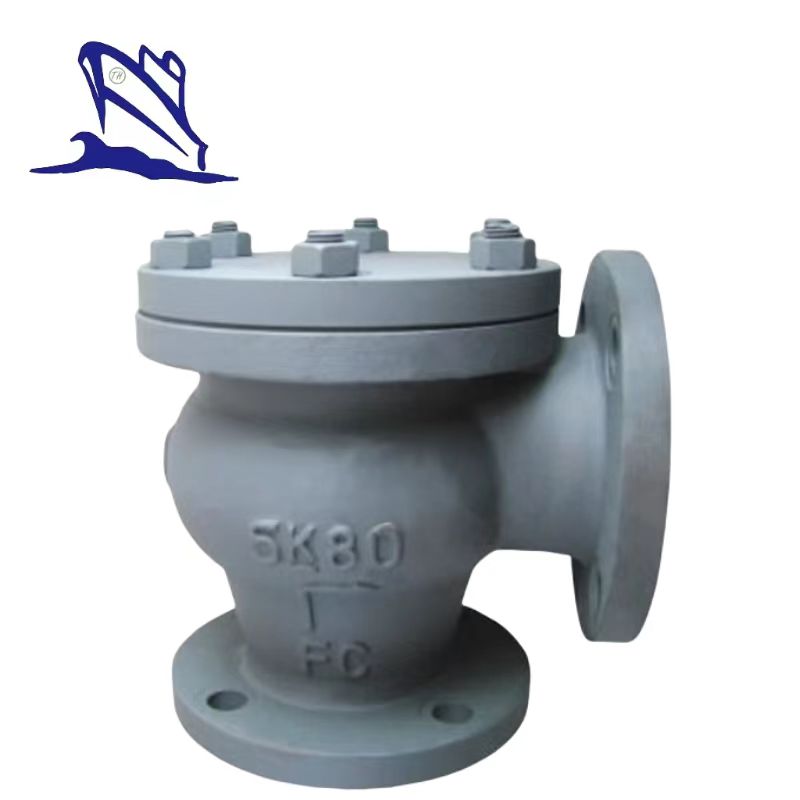

Marine Cast Iron Lift Check Angle Valve JIS F7359 5K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k.

5.DN:50mm-200mm.

6.Main material:

• Body/Bonnet:HT200;
• Seat:SS410/BC6;
• Disc;SS410/BC6.

7.Application;Oil piping and water piping.

8.Function:Such valves are used for preventing refluence.

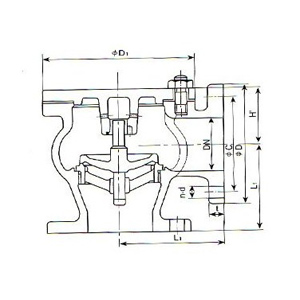

9.Specification of Marine Cast Iron Lift Check Angle Valve JIS F7359 5K :

Size	L1	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	H	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
50	100	130	105	4-15	16	77	9.5
65	115	155	130	4-15	18	81	13.8
80	130	180	145	4-19	18	84	18.9
100	150	200	165	8-19	20	96	25.6
125	170	235	200	8-19	20	108	36.7
150	190	265	230	8-19	22	125	50.9
200	220	320	280	8-23	24	157	95.0
