JIS MARINE VALVE

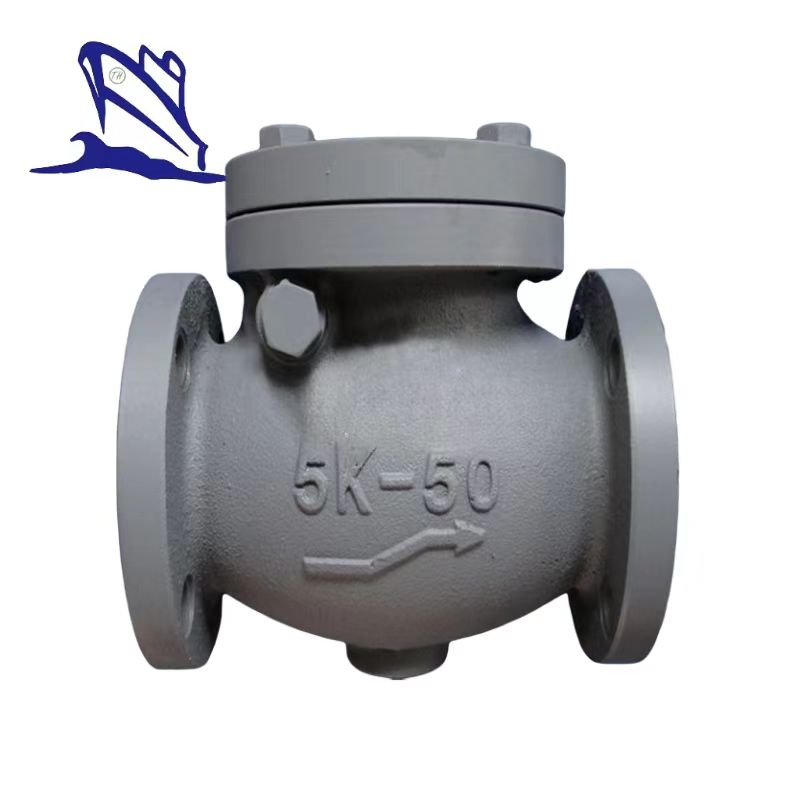

Marine Cast Iron Swing Check Valve JIS F7372 5K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k.

5.DN:50mm-250mm.

6.Main material:

• Body/Bonnet:HT200;
• Seat:BC6;
• Disc:BC6.

7.Application:Oil piping and water piping.

8.Function:Such valves are used for preventing refluence.

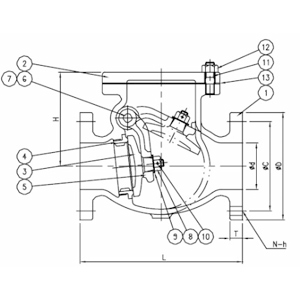

9.Specification of Marine Cast Iron Swing Check Valve JIS F7372 5K :

Size	L	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
50	190	130	105	4-15	16	9.06
65	220	155	130	4-15	18	13.90
80	250	180	145	4-19	18	19.10
100	280	200	165	8-19	20	27.10
125	330	235	200	8-19	20	39.0
150	380	265	230	8-19	22	53.70
200	460	320	280	8-23	24	94.40
250	550	385	345	12-23	26	150.00
