JIS MARINE VALVE

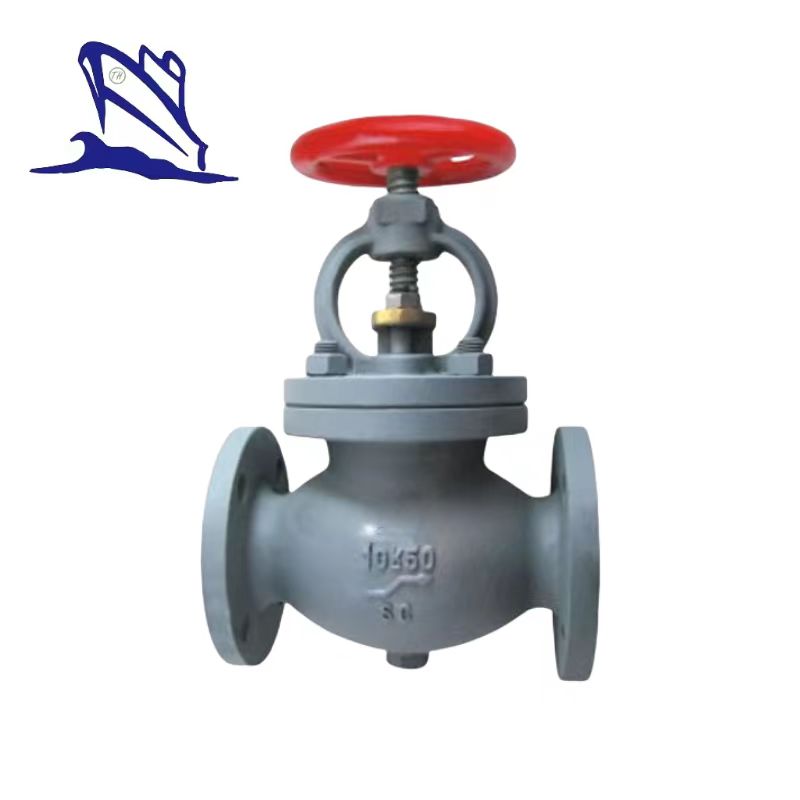

Marine Cast Steel Screw Down Check Globe Valve JIS F7471 10K :

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:10K.

5.DN:50mm-300mm.

6.Main material:

• Body/Bonnet:ZG230-450;
• Seat:SS410/BC6;
• Stem:SS410/H62;
• Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

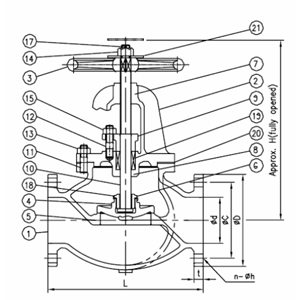

9.Specification of Marine Cast Steel Screw Down Check Globe Valve JIS F7471 10K :

Size	L	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	H	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
50	220	155	120	4-19	16	270	17.9
65	270	175	140	4-19	18	300	26.1
80	300	185	150	8-19	18	310	29.8
100	350	210	175	8-19	18	355	44.8
125	420	250	210	8-23	20	415	69.8
150	490	280	240	8-23	22	470	96.3
200	570	330	290	12-23	22	565	158.0
250	740	400	355	12-25	24	645	257.0
300	840	445	400	16-25	24	735	370.0
