JIS MARINE VALVE

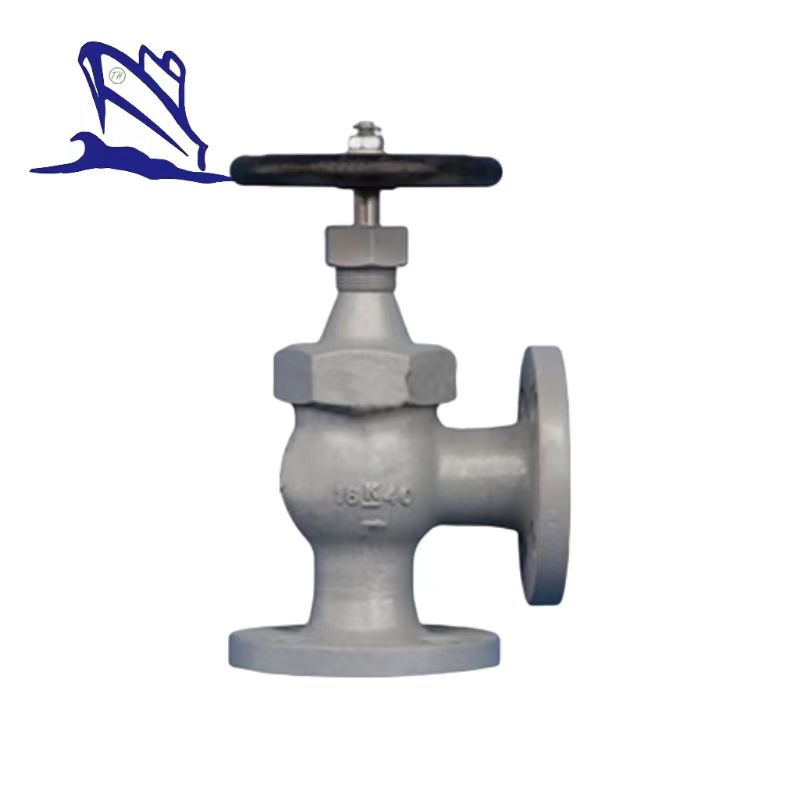

Marine Cast Steel SDNR Angle Valve JIS F7472 10k:

1.Test standard:JISF7400.

2.End standard:JIsb2220.

3.End type:Flange.

4.PN:10k.

5.DN:50mm-300mm.

6.Main material:

• Body/Bonnet:ZG230-450;
• Seat:SS410/BC6;
• Stem:SS410/H62;
• Disc:SS410/BC6.

7.Application:Oil piping,water piping and steam piping.

8.Function:Such valve are used for on-off duty and regulating the flow rate.

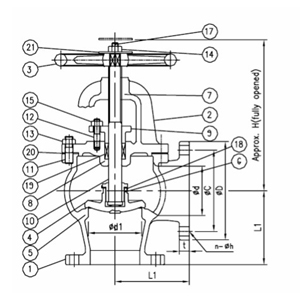

9.Specification of Marine Cast Steel SDNR Angle Valve JIS F7472 10k:

Size	L1	Flange diam. (D)	Pitch (C)	Hole (nxd)	t	H	Weight
(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kgs)
50	120	155	120	4-19	16	240	16.3
65	130	175	140	4-19	18	260	23.1
80	140	185	150	8-19	18	265	25.3
100	160	210	175	8-19	18	300	37.0
125	180	250	210	8-23	20	350	56.6
150	205	280	240	8-23	22	400	77.1
200	230	330	290	12-23	22	480	116.0
250	290	400	355	12-25	24	535	188.0
300	320	445	400	16-25	24	610	256.0
