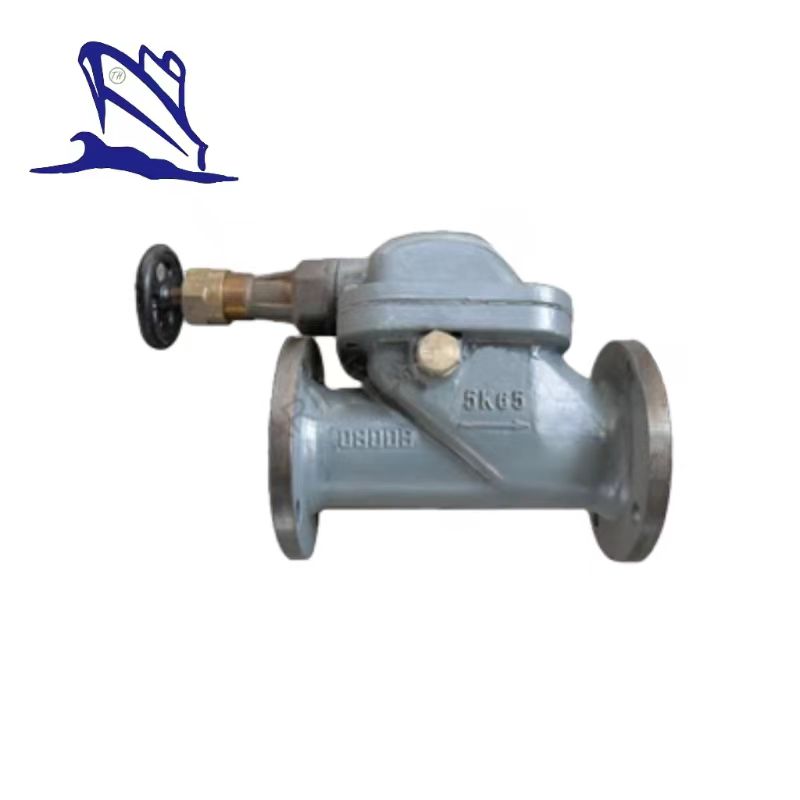

Marine Cast Steel Down Storm Valve JIS F3060 5K
Marine Cast Steel Down Storm Valve JIS F3060 5K
| Size | L | Flange diam. (D) | Pitch (C) | Hole (nxd) | t | H | Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) |
| 50 | 210 | 130 | 105 | 4-15 | 14 | 131 | 14.7 |
| 65 | 240 | 155 | 130 | 4-15 | 14 | 141 | 21.3 |
| 80 | 260 | 180 | 145 | 4-19 | 14 | 155 | 27.7 |
| 100 | 280 | 200 | 165 | 8-19 | 16 | 171 | 40.8 |
| 125 | 330 | 235 | 200 | 8-19 | 16 | 195 | 57.6 |
| 150 | 360 | 265 | 230 | 8-19 | 18 | 212 | 80.3 |
2. Body material: cast steel
3. Pressure: 5K
4. DN: Ф50-150mm
5. Fce to face(L): 210-360mm
6. Weight: 11.5 kg to 51.6 kg
7. Handrail: with or without handrail
