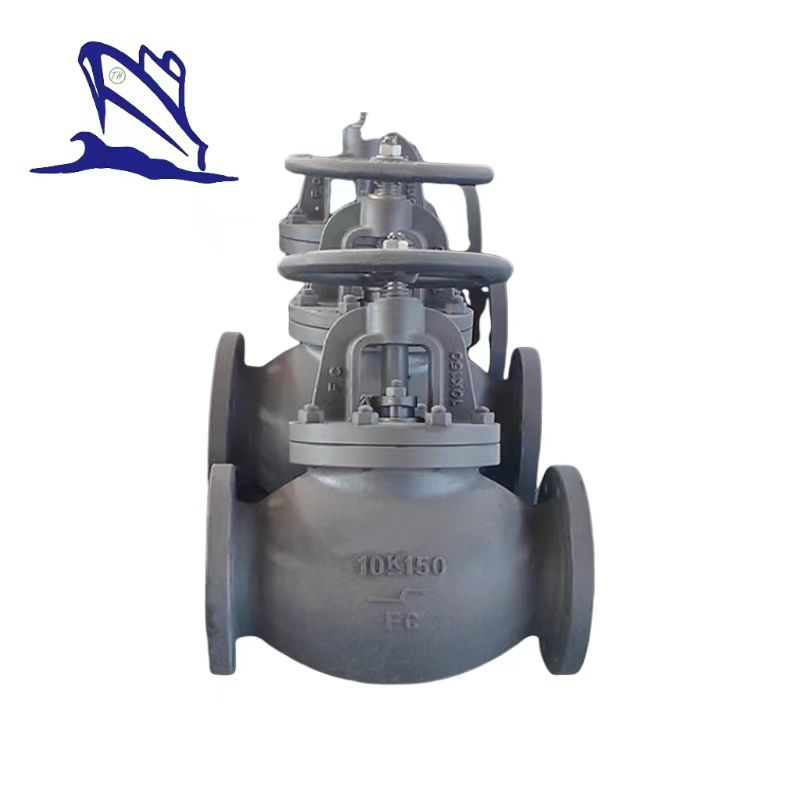

JIS Marine Globe Valve
1. JIS Marine Globe Valve Applicable Scope:
The products are used for controlling the medium to open and close, preventing refluence in fuel oil piping, lubricating oil piping, water piping and steam piping at temperature 205 ℃ or less. Dimensions of flange are according to JIS B2220 flange dimensions of steel pipe.
2. Capability:
| Nominal Pressure | 5K (0.49 Mpa) |
| Seal Pressure | 7.7K (0.761 Mpa) |
| Intensity Pressure | 10.5K (1.03 Mpa) |
3. Material:
Body: Cast Iron (FC200)
Bonnet: Cast Iron (FC200)
Packing Gland: Bronze (BC6) or Stainless Steel(2Cr13)
Stem: C3771BD (Brass) or SUS403
Seat and Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)
4. JIS Marine Globe Valve Main Data for Drawing (mm):
| IMPA CODE | Size | L | Flange Dia.(D) | Pitch (C) | No of Bolt Hole | h | t | H | D2 | Weight |
| 751101 | 50 | 210 | 130 | 105 | 4 | 15 | 16 | 270 | 160 | 14.8 |
| 751102 | 65 | 250 | 155 | 130 | 4 | 15 | 18 | 300 | 180 | 21.3 |
| 751103 | 80 | 280 | 180 | 145 | 4 | 19 | 18 | 310 | 180 | 27.6 |
| 751104 | 100 | 340 | 200 | 165 | 8 | 19 | 20 | 360 | 224 | 40.4 |
| 751105 | 125 | 410 | 235 | 200 | 8 | 19 | 20 | 390 | 250 | 57.9 |
| 751106 | 150 | 480 | 265 | 230 | 8 | 19 | 22 | 445 | 280 | 80.9 |
| 751107 | 200 | 570 | 320 | 280 | 8 | 23 | 24 | 530 | 315 | 139 |
| 751108 | 250 | 740 | 385 | 345 | 12 | 23 | 26 | 650 | 355 | 243 |
| 751109 | 300 | 840 | 430 | 390 | 12 | 23 | 28 | 740 | 400 | 377 |
| 751110 | 350 | 840 | 480 | 435 | 12 | 25 | 30 | 840 | 500 | 463 |
| 751111 | 400 | 1050 | 540 | 495 | 16 | 25 | 30 | 940 | 630 | 643 |
