JIS MARINE VALVE

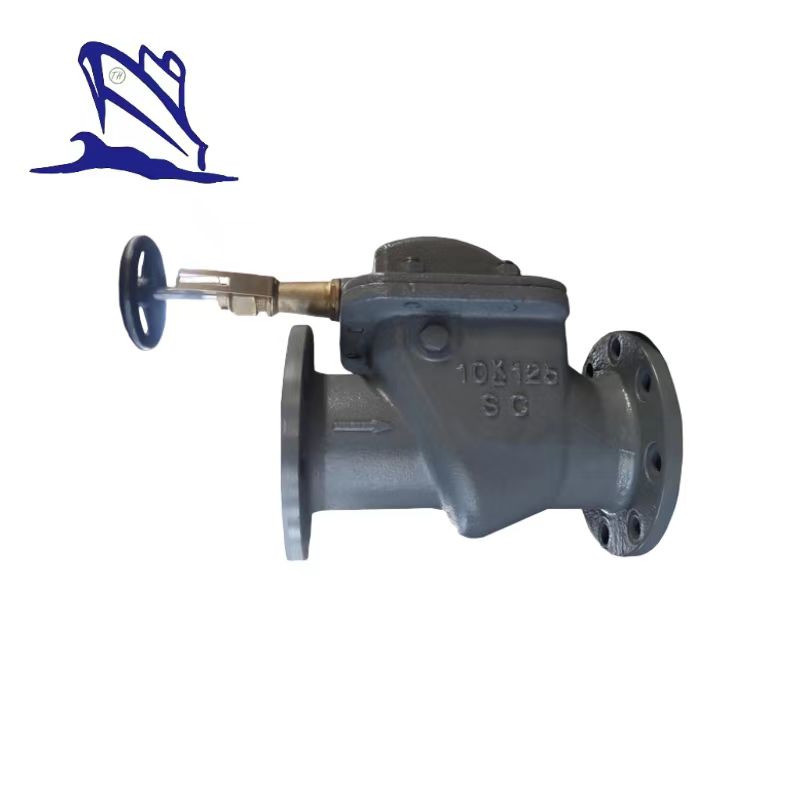

Marine Cast Steel Vertical Storm Valve JIS F3060 5k:

1.Test standard:JISf7400.

2.End standard:JISB2210.

3.End type:flange.

4.PN:5k.

5.DN:50mm-200mm.

6.main material:

• Body/Bonnet:ZG230-450;
• Seat:SS410*BC6;
• Stem:SS410/BC6;
• Disc:SS410/BC6.

7.Application:Seawater and freshwater piping.

8.Function:Such valves are used for discharging seawater or freshwater and preventing refluence.

9.Specification of Marine Cast Steel Vertical Storm Valve JIS F3060 5k;
