JIS MARINE VALVE

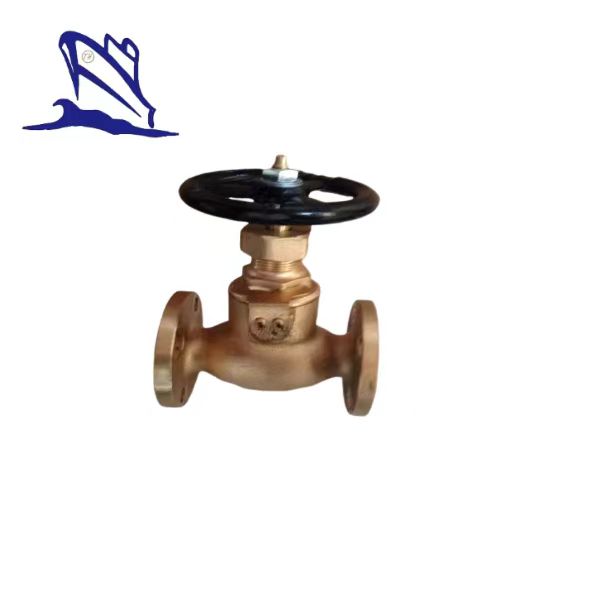

Marine Cast Bronze Straight Gobe Valve JIS F7301 5k:

1.Test standard:JISF7400.

2.End standard:JISB2220.

3.End type:Flange.

4.PN:5k.

5.DN:15mm-65mm.

6.Main material:

• Body/Bonnet:BC6/FCD450;
• Seat:BC6/FCD450;
• Stem:H62/SS410;
• Disc:BC6/FCD450.

7.Application:Oil piping and water piping.

8.Function:Such valves are used for on-off duty and regulating the flow rate.

9.Specification of Marine Cast Bronze Straight Gobe Valve JIS F7301 5k;
