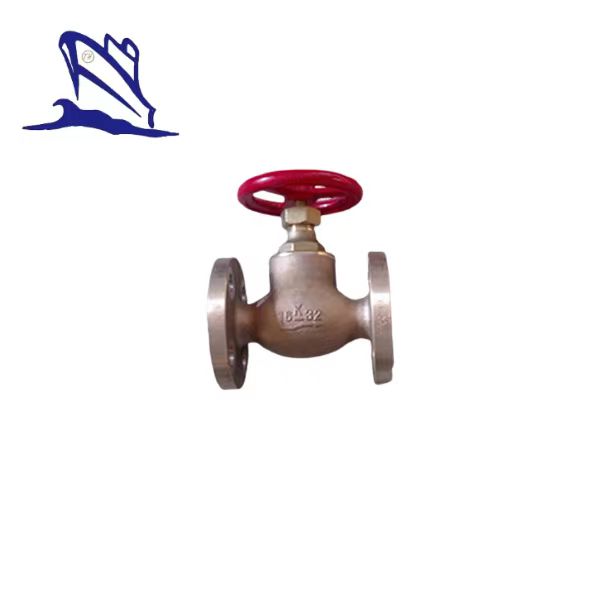

Marine Cast Bronze Straight Globe Valve JIS F7303 16k
Marine Cast Bronze Straight Globe Valve JIS F7303 16k:
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:16k.
5.DN:15mm-40mm.
6.Main material:
- Body/Bonnet:BC6/FCD450;
- Seat:BC6/SS410;
- Stem:H62/SS410;
- Disc:BC6/SS410.
7.Application:Oil piping and water piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.
9.Specification of Marine Cast Bronze Straight Globe Valve JIS F7303 16k:
| IMPA | Type | DN | Face to face/L(mm) | Flange diam./D(mm) | Flange pitch/C(mm) | Flange hole/n*d(mm) | Weight/kg |
| 750141 | F7303 16k Globe | 15 | 110 | 95 | 70 | 4XΦ15 | 2.76 |
| 750142 | 20 | 120 | 100 | 75 | 4XΦ15 | 3.72 | |
| 750143 | 25 | 130 | 125 | 90 | 4XΦ19 | 5.20 | |
| 750144 | 32 | 160 | 135 | 100 | 4xΦ15 | 6.91 | |
| 750145 | 40 | 180 | 140 | 105 | 4xΦ19 | 8.43 |
