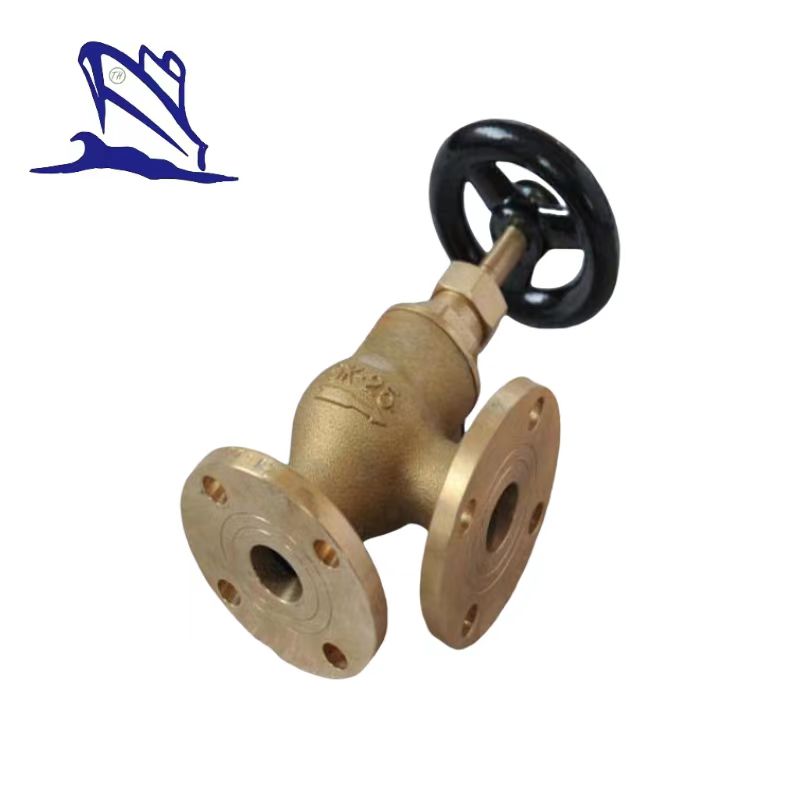

Marine Cast Bronze Angle Globe Valve JIS F7302 5k
Marine Cast Bronze Angle Globe Valve JIS F7302 5k:
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type：Flange.
4.PN:5k.
5.DN:15mm-65mm.
6.Main material:
- Body/Bonnet:BC6/FCD450;
- Seat:BC6/FCD450;
- Stem:H62/SS410;
- Disc:BC6/FCD450.
7.Application:Oil piping and water piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.
9.Specification of Marine Cast Bronze Angle Globe Valve JIS F7302 5k:
| IMPA | Type | DN | Face to face/L(mm) | Flange diam./D(mm) | Flange pitch/C(mm) | Flange hole/n*d(mm) | Weight/kg |
| 750131 | F7302 5k Globe | 15 | 55 | 80 | 60 | 4xΦ12 | 1.98 |
| 750132 | 20 | 60 | 85 | 65 | 4xΦ12 | 2.73 | |
| 750133 | 25 | 65 | 95 | 75 | 4xΦ12 | 3.44 | |
| 750134 | 32 | 80 | 115 | 90 | 4xΦ15 | 4.77 | |
| 750135 | 40 | 85 | 120 | 95 | 4xΦ15 | 5.99 | |
| 750136 | 50 | 100 | 130 | 105 | 4xΦ15 | 10.10 | |
| 750137 | 65 | 115 | 155 | 130 | 4xΦ15 | 15.60 |
