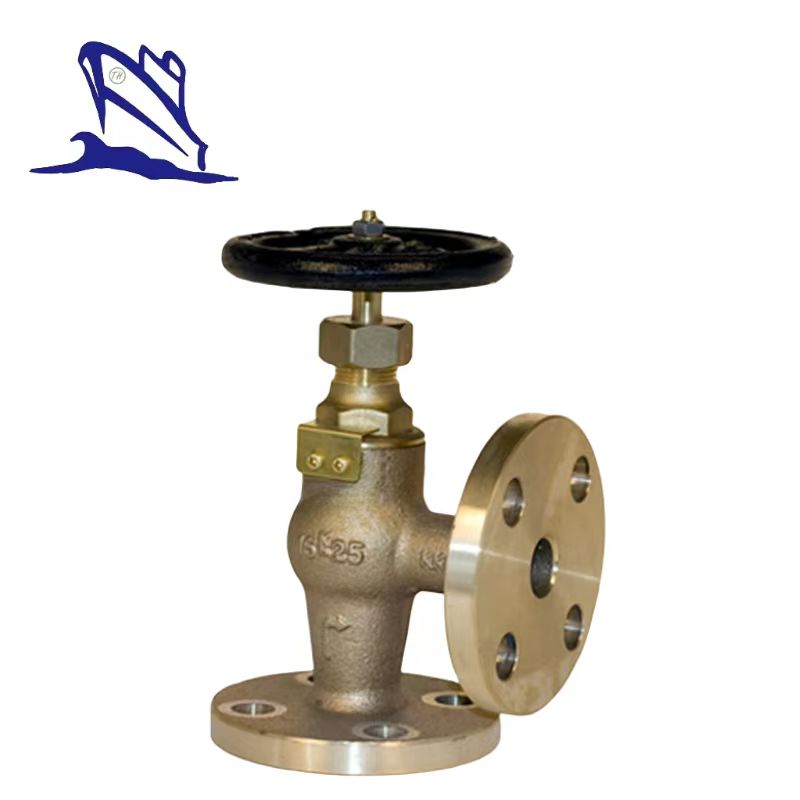

Marine Cast Bronze Angle Globe Valve JIS F7304 16k
Marine Cast Bronze Angle Globe Valve JIS F7304 16k:
1.Test standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:16k.
5.DN:15mm-40mm.
6.Main material:
- Body/Bonnet:BC6/FCD450.
- Seat:BC6/SS410.
- Stem:H62/SS410.
- Disc:BC6/SS410.
7.Application:Oil piping and water piping.
8.Function:Such valves are used for on-off duty and regulating the flow rate.
9.Specification of Marine Cast Bronze Angle Globe Valve JIS F7304 16k:
| IMPA | Type | DN | Face to face/L(mm) | Flange diam. | Flange pitch/C(mm) | Flange hole/n*d(mm) | Weight/kg |
| 750151 | F7304 16k Globe | 15 | 70 | 95 | 70 | 4xΦ15 | 2.73 |
| 750152 | 20 | 75 | 100 | 75 | 4xΦ15 | 3.65 | |
| 750153 | 25 | 85 | 125 | 90 | 4xΦ19 | 5.16 | |
| 750154 | 32 | 95 | 135 | 100 | 4xΦ19 | 6.72 | |
| 750155 | 40 | 100 | 140 | 105 | 4xΦ19 | 8.13 |
